Bryant 72120FR Industrial Grade Locking Receptacle 20 Amp 120/208V AC Nema L21-20R

Product Description

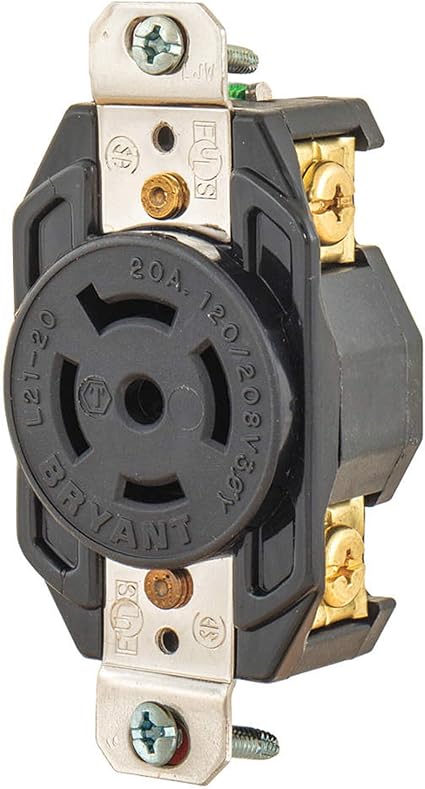

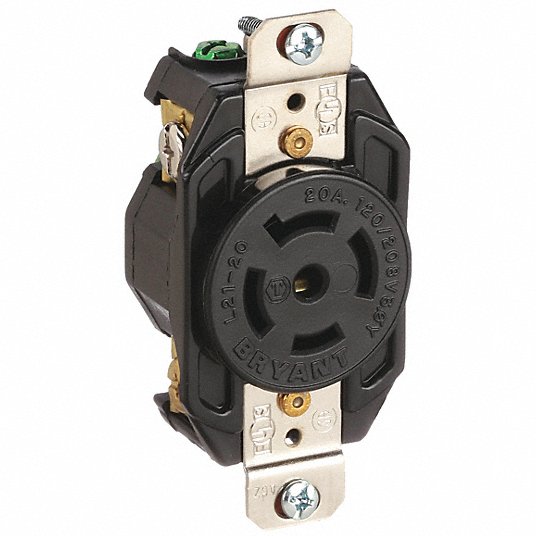

The BRYANT 72120FR is an industrial grade locking receptacle. This receptacle is designed for heavy-duty use and provides a reliable and safe electrical connection. It supports 4-pole, 5-wire configurations and is rated for 20 Amp at 120/208V AC, with a NEMA L21-20R rating.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide Width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade locking receptacle with combination wiring terminals and corrosion-resistant mounting straps.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72120FR
• Country of Origin: USA

Technical Specifications

• Brand: BRYANT
• Manufacturer Part Number: 72120FR
• Model: 72120FR
• Application: Extra Heavy Duty Industrial Specification Grade
• Type: Receptacle
• Material: Steel
• Voltage: 120/208V AC
• Amperage: 20 A
• Connector Type: Plug-In
• Total Power Outlets: 1
• Specification Met: NEMA
• UPC: 781786701236
• Global Trade Identification Number: 00781786701236
• Manufacturer: Bryant Electric
• Included Components: Electrical Receptacle
• Unit Count: 1.0 Count
• Item Type Name: Electrical Receptacle, Electrical Outlet
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Single Nylon Receptacle
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Three Phase
• Voltage Rating Description: 3 Phase Y 120/208V AC
• Number Of Poles: 4
• Number Of Wires: 5
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L21-20R
• Standards - RoHS Compliance Status: CM
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• Contact Material: Copper Alloy
• Flange Material: Composite
• Flange Type: Non-Flanged
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 2 hp
• Housing Color: Black
• Housing Material: Nylon
• Hub Type: Dead End
• IP Rating: Not Rated
• Includes Mounting Hardware: Yes
• Maximum Wire Size: 8 AWG
• Midget Locking: No
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.28 in
• Mount Type: Flush
• NEMA Configuration: L21-20
• NEMA Enclosure Rating: Not Rated
• NEMA Receptacle Configuration: L21-20R
• Number of Gangs: 1
• Number of Outlets: 1
• Polarized: Yes
• Resistance Properties: Corrosion Resistant
• Shrouded: No
• Standards: UL 498
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121406
