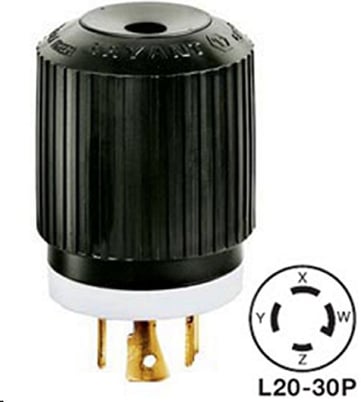

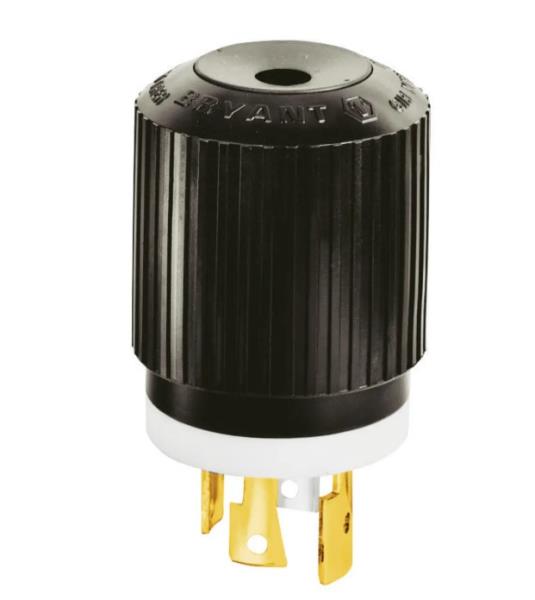

Bryant 72030NP Locking Devices Industrial Male Plug 30A 3-Phase Wye 347/600V AC L20-30P

Product Description

The BRYANT 72030NP is an industrial male locking plug designed for 3-Phase Wye 347/600V AC systems. This 30A plug features screw terminals and a L20-30P NEMA rating. It is suitable for heavy-duty industrial applications and ensures a secure and reliable connection.

• Hand grip features wide-rib, non-slip design
• Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
• Internal self-centering Triple Gripper cord grip with radius teeth design provides secure cord retention

Product Highlights

The BRYANT 72030NP locking plug is ideal for industrial applications requiring a robust and secure electrical connection. Its durable construction and safety features make it a reliable choice for demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72030NP

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 72030NP
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Triple Gripper Nylon Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786700628
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 3 Phase Y 347/600 VAC
• Voltage Rating Description: 3 Phase Y 347/600 VAC
• Number Of Poles: 4-Pole
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L20-30P
• Cord Type: All Listed Portables
• Manufacturer: Bryant
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Locking Devices, Industrial, Male Plug, 30A 3-Phase Wye 347/600V AC, 4-Pole 4-Wire Non-Grounding, L20-30P, Screw Terminal, Black and White.
• Voltage: 347 VAC, 600 VAC
• Body Type: Straight
• Connection Type: Plug
• NEMA Configuration: L20-30P
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• MPN: 72030-NP
• Part #: 72030NP
• Category: Plug/Receptacle
• Product Style: Standard Locking
• Amperage: 30A
• Device Type: Plug
• Poles and Wires: 4 Pole, 4 Wire
• Cord Grip Range: 3 Wire: .300"-.950" (7.62-24.13), 4 and 5 Wire: .465"-1.115" (11.81-29.21)
• Terminal Screws: #10 Bronze
• Face/Terminal Assembly: Impact Modified Nylon
• Cover (Housing): Super Tough Nylon
• Terminal Cover: Clear Polycarbonate
• Cord Grip Assembly: Impact Modified Nylon
• Plug Blades: Brass, (neutral blade nickel-plated)
• Terminal Clamp Nut: Zinc-Plated Steel
• Assembly Screws: Zinc-Plated Steel
• Dielectric Voltage: Withstands 3500V per UL498
• Max Working Voltage: 600V AC or 250V DC
• Current Interrupting: Certified for current interrupting at full rated current
• Temperature Rise: Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL498
• Terminal Identification: (X, Y Z Brass Hot) (G, Green, Grounding) (W, Silver, Neutral)
• Terminal Accommodation: #18-#8 AWG Flexible Cord
• Product Identification: Ratings and NEMA identification are permanently marked on device
• Cord Accommodation: Round portable service cords in accordance with device ratings as defined in UL Standard 62, CSA C22.2 No. 49
• Flammability: HB or better per UL94 or CSA 22.2
• Operating Temperatures: Maximum continuous 60 deg C, minimum -40 deg C without impact
• UL Standard: UL Listed to Standard 498 (Attachment Plug and Receptacles)
• CSA Standard: Certified to CSA Standard C22.2 No.42M1984 (General Use Receptacles) and C22.2 No. 182.2M1987 (Industrial Locking Type, Special Use Attachment Plugs, Receptacles and Connectors) where applicable
• UL Listing File: UL Listed File #E1381- Guide #AXUT
• CSA Certification File: CSA Certified File #LR16215- Guide #20T2
• Fed Spec: Federal Specifications WC596 (where applicable)
• Complies with: Complies with NEMA Standards WD-1, WD-6 and UL 498
