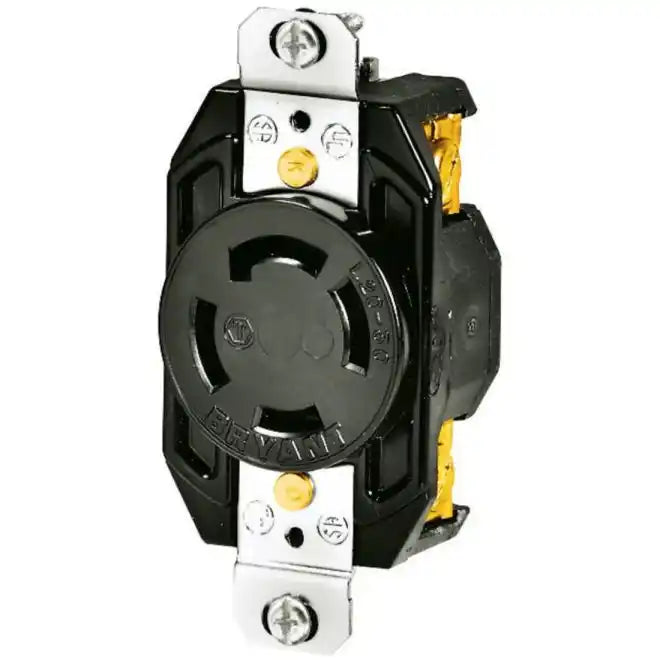

Bryant 72030FR Flush Receptacle 30A 3-Phase Wye 347/600V AC L20-30R

Product Description

The BRYANT 72030FR is an industrial-grade flush receptacle, designed for heavy-duty applications. Rated at 30A, 3-Phase Wye 347/600V AC, this 4-pole, 4-wire non-grounding receptacle features screw terminals for secure connectivity. The NEMA L20-30R configuration and robust construction make it suitable for demanding industrial environments.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade flush receptacle with robust construction, ideal for heavy-duty applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72030FR

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 72030FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Single Nylon Receptacle
• Material: Thermoplastic with Nylon Face
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786700536
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 3 Phase Y 347/600 VAC
• Voltage Rating Description: 3 Phase Y 347/600V AC
• Number Of Poles: 4-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L20-30R
• Manufacturer Part Number: 72030FR
• Manufacturer Alternate Number: 72030-FR
• Rated Current: 30A
• Power Phase: 3-Phase
• Rated Voltage: 347/600 VAC
• Locking Blade: Yes
• Ground: Non-Grounding
• Mounting: Flush
• Face OD: 1.56 in
