Bryant 72020FR Flush Receptacle 20A 3-Phase Wye 347/600V AC L20-20R

Product Description

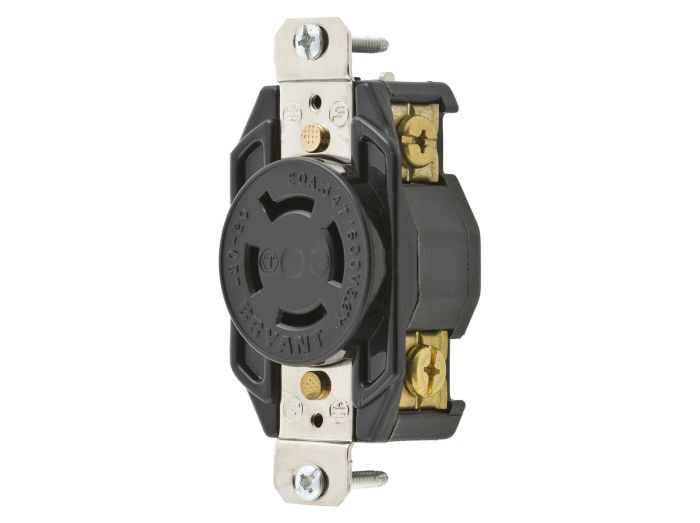

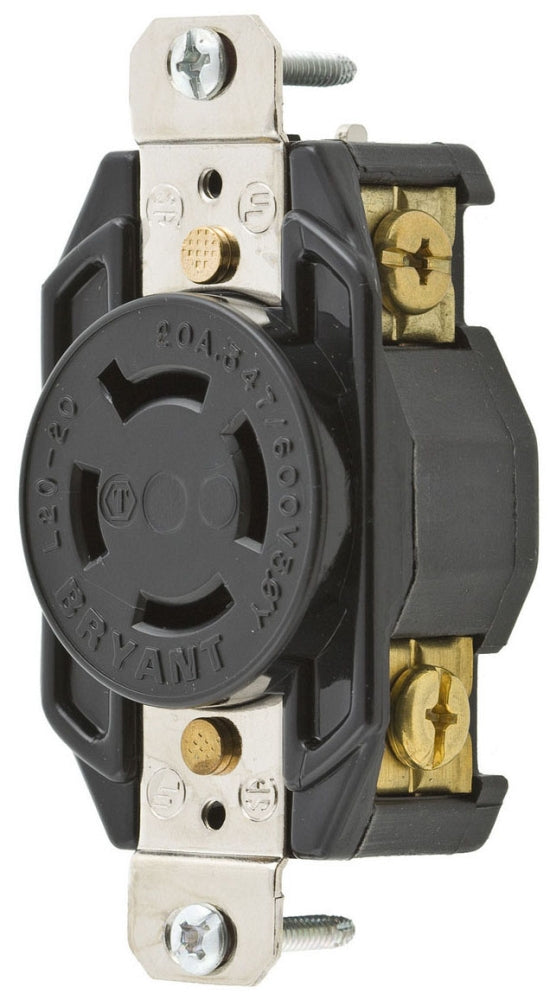

The BRYANT 72020FR is an industrial-grade flush nylon receptacle, designed for heavy-duty applications. Rated at 20A, it supports 3-Phase Wye systems at 347/600V AC, featuring a 4-Pole 5-Wire grounding configuration and L20-20R NEMA rating. The screw terminal ensures secure connectivity.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade flush receptacle with robust construction and secure wiring for demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72020FR
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 72020FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786700239
• Amperage Rating: 20 A
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Three Phase
• Voltage Rating: 600 V
• Voltage Rating Description: 3 Phase Y 277/480V AC
• Number Of Poles: 4-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L20-20R
• Manufacturer Part Number: 72020FR
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 347 VAC, 600 VAC
• Body Type: Straight
• Connection Type: Receptacle
• NEMA Configuration: L20-20R
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• MPN: 72020FR
• Country of Origin: United States
• Category: Plug/Receptacle
• Ground: Non-Grounding
• Poles: 4
• Device Type: Locking Receptacle
• Grade: Tech-Spec
• Amperage: 20A
• Mounting Style: Flush
• Gender: Female
• Material Type: Plastic
