Bryant 71930NP Locking Plug Nm L19-30P

Product Description

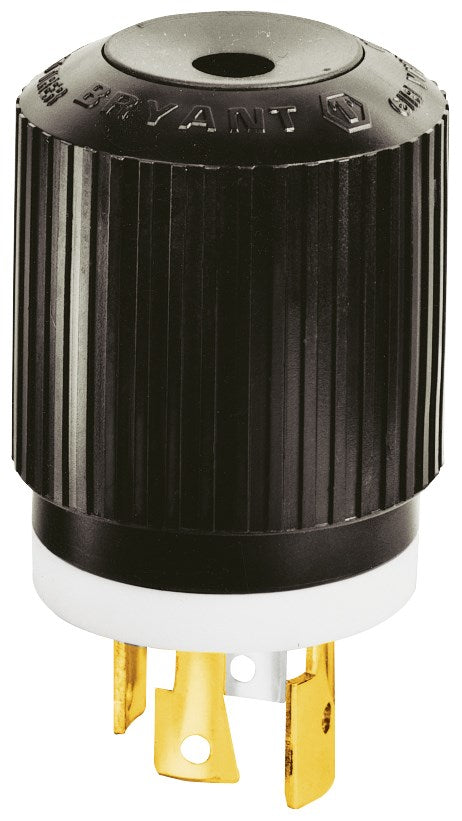

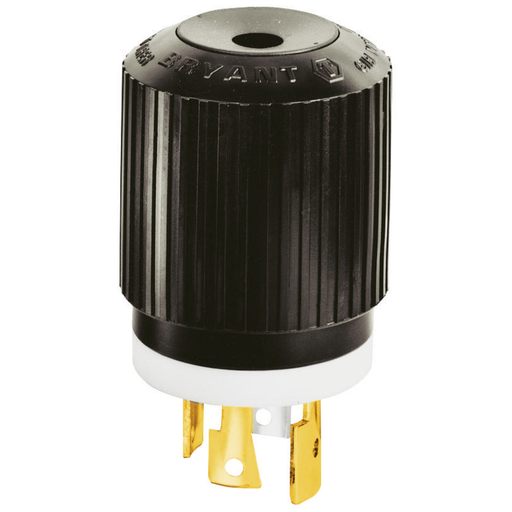

The BRYANT 71930NP Locking Plug Nm L19-30P is an industrial male plug designed for 3-Phase Wye 277/480V AC, 4-Pole 4-Wire Non-Grounding applications. It features screw terminals and a robust construction suitable for demanding environments. The plug is ideal for heavy-duty industrial use.

• Hand grip features wide-rib, non-slip design
• Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
• Captive, combination Slot/Phillips assembly screws

Product Highlights

Industrial grade locking plug with enhanced grip and contaminant protection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71930NP
• Country of Origin: US

Technical Specifications

• UPC: 781786699526
• UNSPSC: 39121402
• Country of Origin: US
• Amperage Rating: 30 A
• Material: Composite
• Number Of Poles: 4
• Type: Plugs
• Voltage Rating: 3 Phase Y 277/480 VAC
• Wattage: 14,400 W
• Brand ID: BRYANT
• Catalog Number: 71930NP
• Cord Diameter: 0.465-1.150 in
• Cord Type: All Listed Portables
• Current Rating: 30 A
• Description - Long: Locking Devices, Industrial, Male Plug, 30A 3- Phase Wye 277/480V AC, 4-Pole 4-Wire Non-Grounding, L19-30P, Screw Terminal, Black and White.
• Description - Short: Locking Devices, Industrial, Male Plug, 30A 3- Phase Wye 277/480V AC, 4-Pole 4-Wire Non-Grounding, L19-30P, Screw Terminal, Black and White
• EU RoHS Indicator: Yes
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• FV_Current/Amperage Rating Description: 30 Amp
• FV_Voltage Rating Description: 3 Phase Y 277/480 VAC
• Item Type: 30A Triple Gripper Nylon Plug
• Material - Mounting Hardware: Cord Mounted
• NEMA Rating: L19-20P
• Number Of Wires: 4
• OEM Brand Name: Hubbell Bryant
• Phase: 3
• Product Name: 71930NP
• Wire Size: #18 AWG to #8 AWG
• Height: 2.86 in
• Width: 2.13 in
• Application: Extra Heavy Duty Industrial
• Special Features: Standard Product
• Connectivity: Screw Terminals
• Style: Internal Cord Clamp
