Bryant 71920NP Locking Plug 20A 277/480V

Product Description

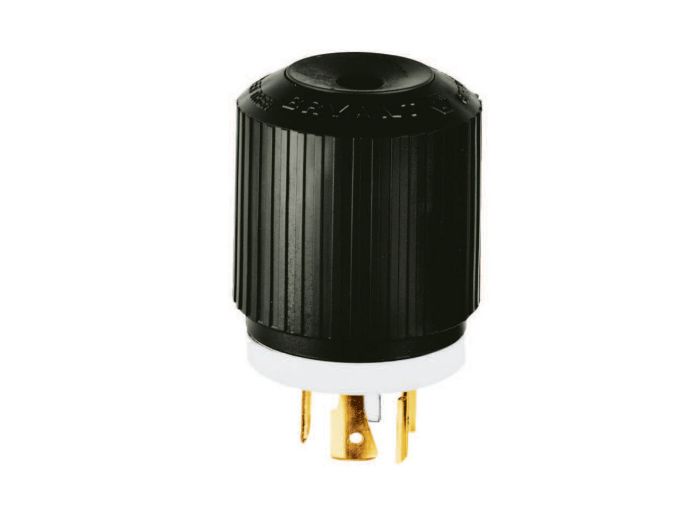

The Bryant 71920NP locking plug is rated at 20A and 277/480V. This industrial male nylon plug is designed for 3-Phase Wye systems and features a 4-pole, 4-wire non-grounding configuration. The plug has screw terminals and a L19-20P NEMA configuration.

• Hand grip features wide-rib, non-slip design
• Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
• Captive, combination Slot/Phillips assembly screws

Product Highlights

Ideal for heavy-duty industrial applications, this plug ensures secure cord retention and prevents contaminant infiltration.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71920NP
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: 71920NP
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 20 A
• Number of Poles: 4
• Number of Wires: 4
• Voltage: 277 VAC, 480 VAC
• Body Type: Straight
• Connection Type: Plug
• NEMA Configuration: L19-20P
• Watertight: No
• Isolated Ground: No
• Color: Black, White
• Approvals: CSA, UL
• Application: Extra Heavy Duty Industrial
• Catalog Number: 71920NP
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Triple Gripper Nylon Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786699021
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Phase: Three Phase
• Voltage Rating: 3 Phase Y 277/480 VAC
• Voltage Rating Description: 3 Phase Y 277/480 VAC
• Number Of Poles: 4-Pole
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Cord Type: All Listed Portables
• Carton Quantity: 10
