Bryant 71920NC Locking Connector Nm L19-20R

Product Description

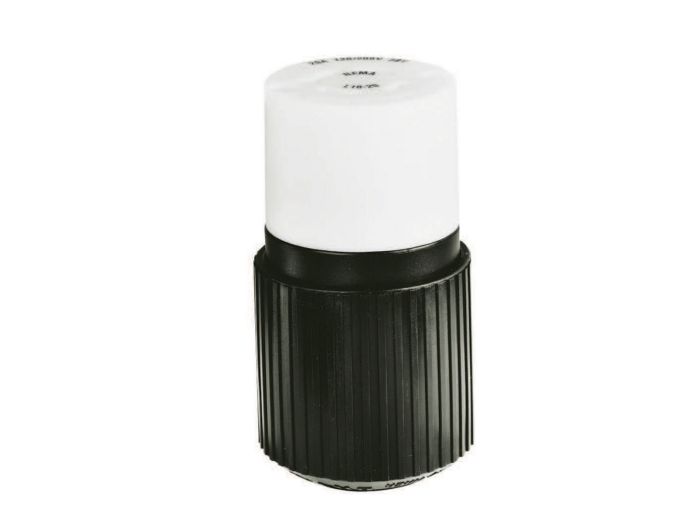

The BRYANT 71920NC is an industrial-grade female nylon connector body. Rated at 20A, 3-Phase Wye 277/480V AC, it features a 4-Pole 4-Wire non-grounding configuration and L19-20R NEMA configuration. Constructed from impact/chemical resistant nylon with screw terminals, it ensures secure cord retention for heavy-duty industrial applications.

• Alignment keys for easy assembly

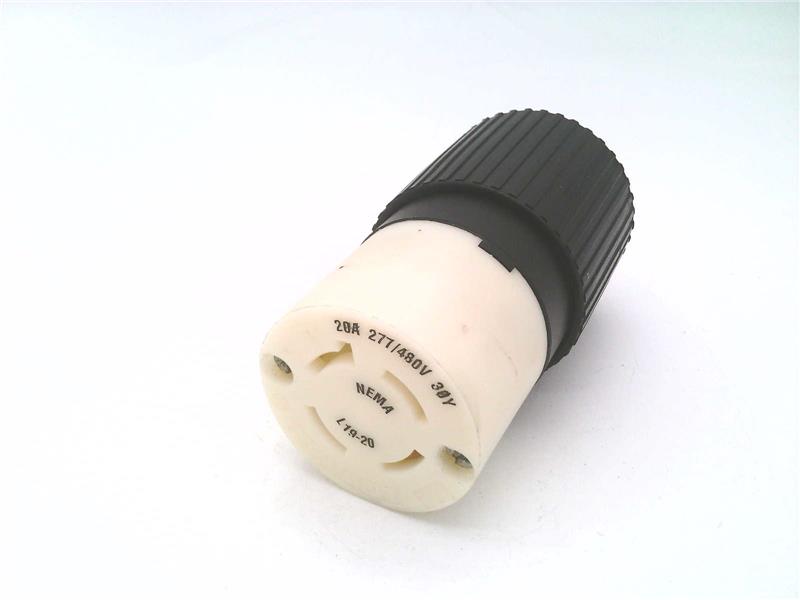

• Amperage, voltage and NEMA configuration imprinted on face for easy identification
• Impact/chemical resistant, toughened nylon construction

Product Highlights

Industrial-grade nylon connector with secure cord grip and clear identification markings.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71920NC
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: 71920NC
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 20 A
• Number of Poles: 4
• Number of Wires: 4
• Voltage: 277 VAC, 480 VAC
• Phase: 3Y
• Body Type: Straight
• Connection Type: Connector
• NEMA Configuration: L19-20R
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Application: Heavy Duty Industrial
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 20A Triple Gripper Nylon Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 C with impact.
• Type: Connector Body
• UPC: 781786698994
• Height: 3.9 in
• Length: 2.13 in
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Voltage Rating: 3 Phase Y 277/480 VAC
• Voltage Rating Description: 3 Phase Y 277/480 VAC
• Conductor Range: #14 AWG to #12 AWG
• Number of Conductors: 4-Wire Non-Grounding
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L19-20R
• Electrical Plug Type: L19-20R
• Number of Outlets: 1
• Input Voltage: 277/480V
• Maximum Input Current: 20A
• Output Voltage: 277/480V
• Category: Plug/Receptacle
