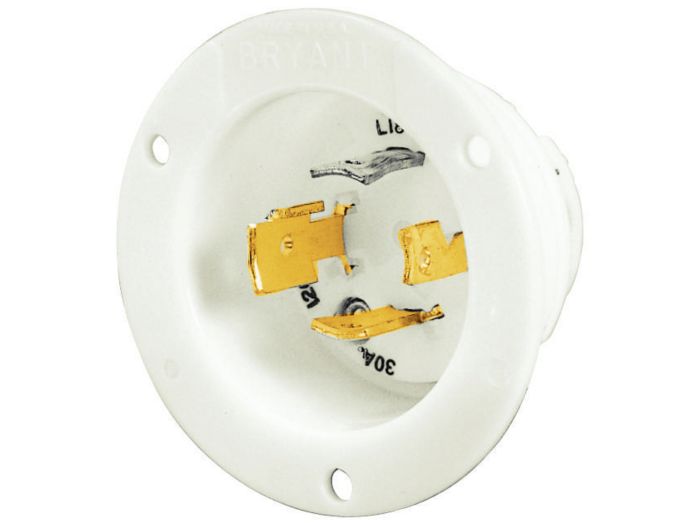

Bryant 71830MB Flanged Inlet 30A 3-Phase Wye 120/208V AC L18-30P

Product Description

The BRYANT 71830MB is an industrial flanged inlet designed for extra heavy-duty applications. This 30A, 3-Phase Wye 120/208V AC, 4-Pole 4-Wire non-grounding inlet features screw terminals and impact-resistant thermoplastic construction. It is suitable for indoor dry environments unless protected by additional means.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Industrial flanged inlet with robust construction and easy installation for demanding applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71830MB
• Country of Origin: United States

Technical Specifications

• Catalog Number: 71830MB
• Application: Extra Heavy Duty Industrial
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Flanged Inlet
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact
• Type: Flanged Inlet
• UPC: 781786698468
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Dielectric Strength: Withstands 3500V
• Voltage Rating: 3 Phase Y 120/208 VAC
• Voltage Rating Description: 3 Phase Y 120/208V AC
• Number Of Poles: 4-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L18-30P
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Phase: 3Y
• Body Type: Straight
• Connection Type: Flanged Inlet
• NEMA Configuration: L18-30P
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Input Voltage: 250v
• Maximum Input Current: 30A
• Recommended Environment: Indoor
• Output Voltage: 250v
