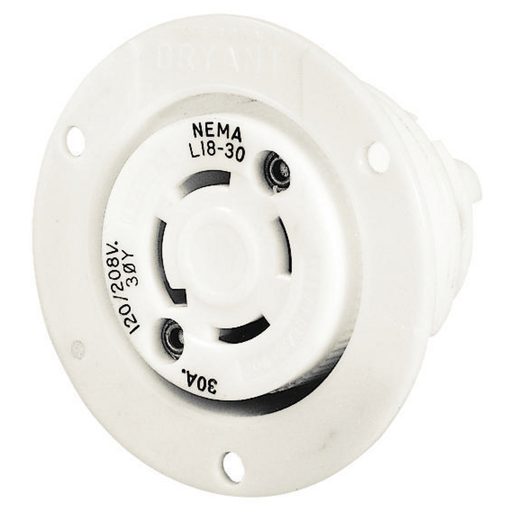

Bryant 71830ER Flanged Receptacle 30A 3-Phase Wye 120/208V AC L18-30R

Product Description

The BRYANT 71830ER is an industrial flanged receptacle designed for heavy-duty applications. This 30A, 3-Phase Wye 120/208V AC, 4-Pole 4-Wire non-grounding receptacle features screw terminals for connectivity. It is constructed from impact-resistant thermoplastic for durability and is suitable for indoor dry environments unless protected by additional means.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Industrial flanged receptacle, 30A, 3-Phase Wye 120/208V AC, 4-Pole 4-Wire non-grounding, with screw terminals and impact-resistant thermoplastic construction.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71830ER
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 71830ER
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Flanged Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: Flanged Receptacle
• UPC: 781786698406
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 3 Phase Y 120/208 VAC
• Voltage Rating Description: 3 Phase Y 120/208V AC
• Number Of Poles: 4-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L18-20R
• Special Features: Standard Product
• Description - Invoice: LKG FLG-RCPT, 30A 120/208V, L18-30R,WH
• Harmonization Code: 8536699999
• MSDS Flag: No
• Country of Origin: United States
• Class Code: A08
• Freight Class Code: 06168002
• Image Actual Or Representative: A
• Sub Class Code: A08A172
• Base Unit of Measure: EA
• Lowest Level UOM: Each
• Certifications: EU RoHS Indicator
