Bryant 71820NP Locking Devices Industrial Male Plug 20A

Product Description

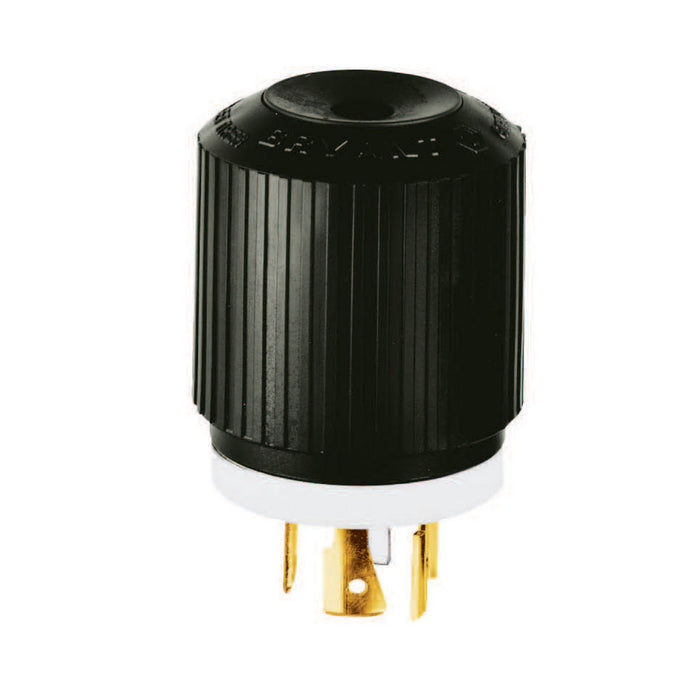

The BRYANT 71820NP is an industrial male nylon plug designed for locking devices. Rated at 20A, it supports a 3-Phase Wye 120/208V AC configuration with 4-Pole 4-Wire non-grounding. The plug features screw terminals and a L18-20P NEMA rating. Its hand grip has a wide-rib, non-slip design for secure handling.

• Hand grip features wide-rib, non-slip design
• Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
• Captive, combination Slot/Phillips assembly screws

Product Highlights

Durable nylon plug with secure cord retention and easy identification.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71820NP
• Country of Origin: Mexico

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 71820NP
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Triple Gripper Nylon Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786698222
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Three Phase
• Voltage Rating: 3 Phase Y 120/208 VAC
• Voltage Rating Description: 3 Phase Y 120/208 VAC
• Number Of Poles: 4-Pole
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L18-20P
• Cord Type: All Listed Portables
• Manufacturer Part Number: 71820NP
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 120 VAC, 208 VAC
• Body Type: Straight
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Plug Type: Type L
• Maximum Input Current: 16 -20 A
• Model: Turn & Pull Plug
• Features: Locking Plug
• Resistance Properties: Impact Resistant
• Output Voltage: 120/208v
