Bryant 71820FR Locking Devices Industrial Flush Receptacle 20A 3-Phase Wye 120/208V AC L18-20R

Product Description

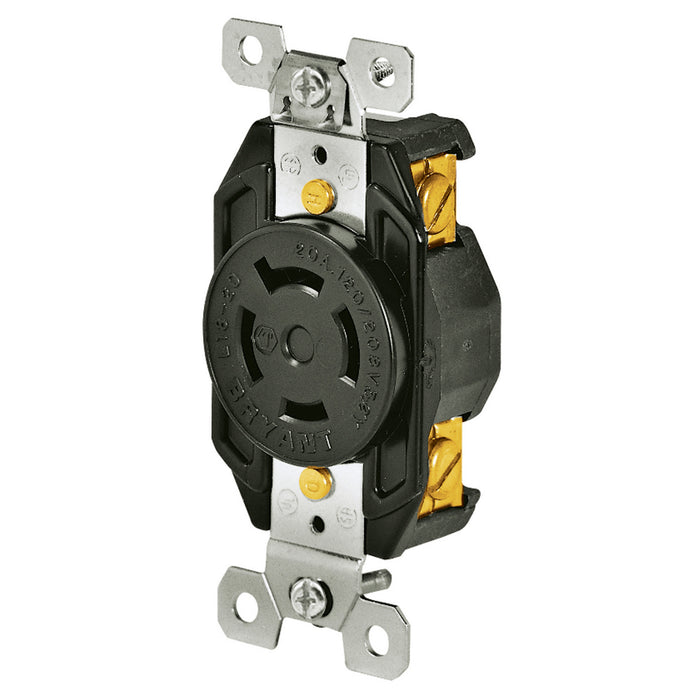

The BRYANT 71820FR is an industrial flush nylon receptacle. Rated at 20A 3-Phase Wye 120/208V AC, this 4-pole, 4-wire non-grounding receptacle features screw terminals and a L18-20R NEMA rating. It is suitable for extra heavy-duty industrial applications and indoor dry environments.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade locking receptacle with robust construction for secure and reliable connections in demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71820FR

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 71820FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786698130
• Amperage Rating: 20 A
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Three Phase
• Voltage Rating: 3 Phase Y 120/208 VAC
• Voltage Rating Description: 3 Phase Y 120/208V AC
• Number Of Poles: 4-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L18-20R
• Standards - RoHS Compliance Status: CM
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 120 VAC, 208 VAC
• Body Type: Straight
• Connection Type: Receptacle
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Brand: Bryant
• SKU: 71820FR
• Mfr. Part Number: 71820FR
• MPN: 71820fr
• Category: Plug/Receptacle
