Bryant 71730NC Locking Connector Nm L17-30R

Product Description

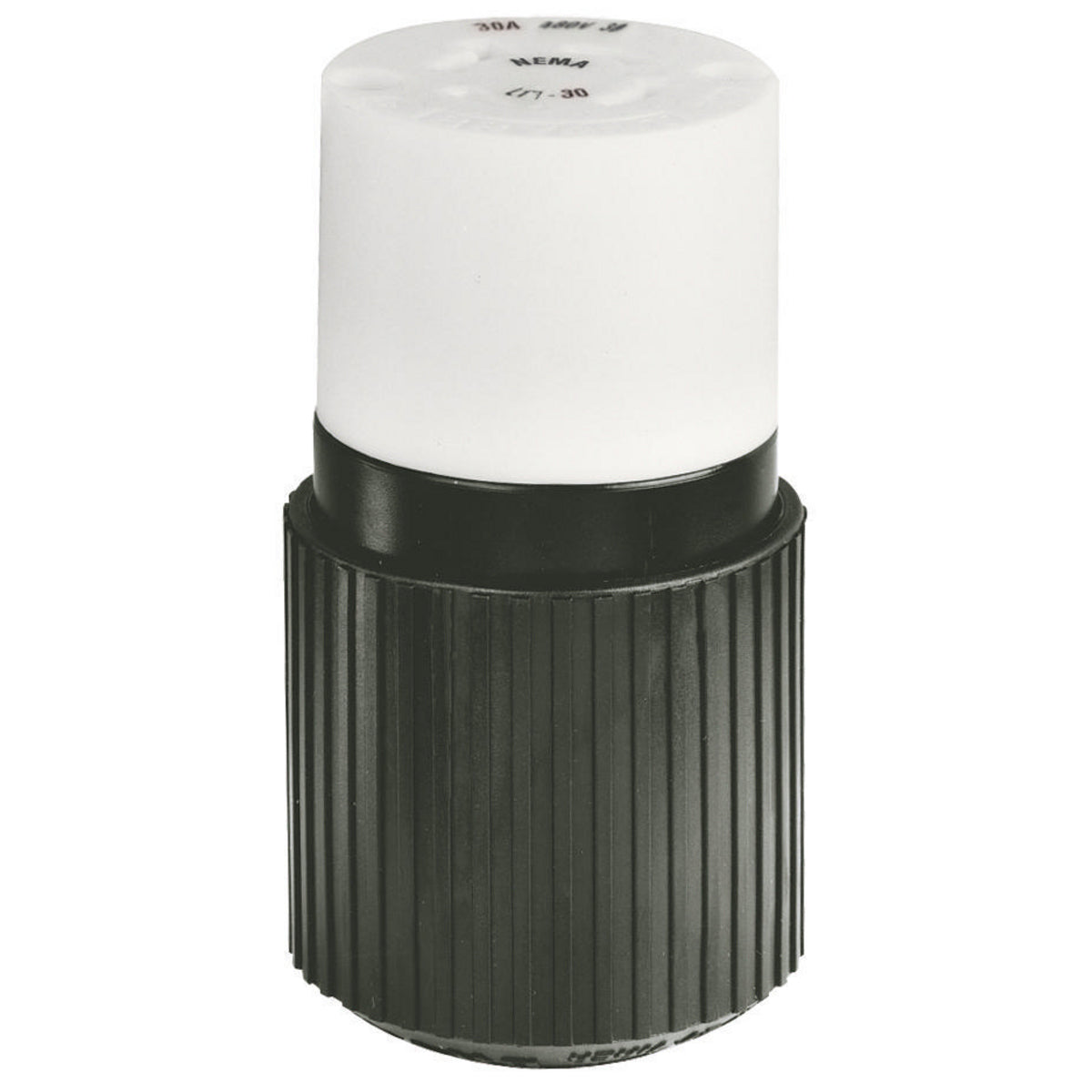

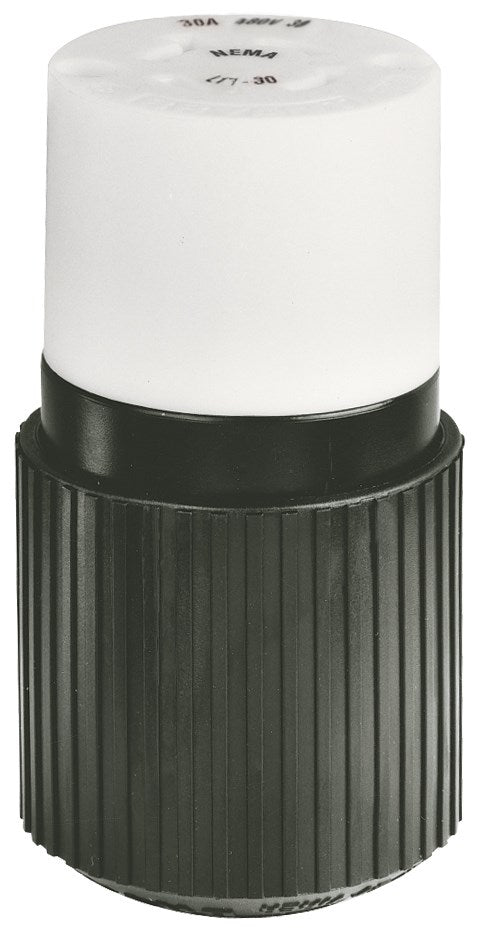

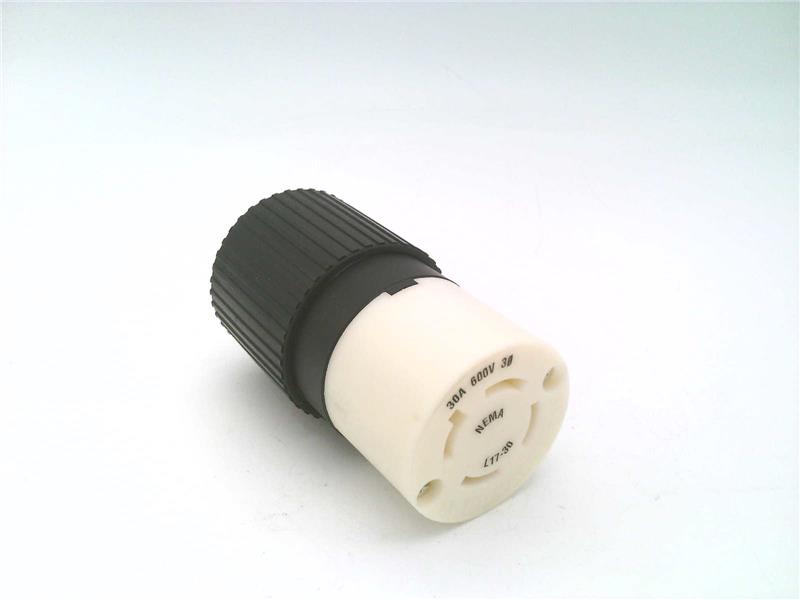

The BRYANT 71730NC is an industrial heavy-duty locking blade connector. This female connector body supports 30A, 3-Phase Delta 600V AC, and 3-Pole 4-Wire Grounding with a NEMA rating of L17-30R. It features screw terminals and accepts cord sizes from 0.46 to 1.15 inches.

• Face and body feature alignment keys for easy assembly
• Amperage, voltage and NEMA configuration imprinted on face for easy identification
• Impact/chemical resistant, toughened nylon construction

Product Highlights

Industrial-grade locking connector with secure cord retention and easy assembly. Ideal for heavy-duty applications requiring reliable power connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71730NC
• Country of Origin: US

Technical Specifications

• Catalog Number: 71730NC
• Application: Heavy Duty Industrial
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Triple Gripper Nylon Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• Style: Internal Cord Clamp
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 781786697690
• Dimensions: 2.13 in x 2.13 in x 3.90 in
• Height: 3.9 in
• Length: 2.13 in
• Width: 2.13 in
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Voltage Rating: 3 Phase 600 VAC
• Voltage Rating Description: 3 Phase 600 VAC
• Conductor Range: #12 AWG to #8 AWG
• Number of Conductors: 4-Wire Grounding
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L17-30R
• Standards - RoHS Compliance Status: CM
• Carton Quantity: 10
• Pallet Quantity: 1920
• Cord Diameter: 0.465-1.150 in
• Description - Long: Locking Devices, Industrial, Female Connector Body, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, L17-30R, Screw Terminal, Black and White
• Description - Short: Locking Devices, Industrial, Female Connector Body, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, L17-30R, Screw Terminal, Black and White
• FV_Current/Amperage Rating Description: 30 Amp
• FV_Voltage Rating Description: 3 Phase 600 VAC
• OEM Brand Name: Hubbell Bryant
• Product Name: 71730NC
• Phase: Three
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• Connection Orientation: Straight
• Shrouded: Yes
• Grounding: Grounded
• Housing Color: Black, White
• Cap Type: No Cap
• Standards: ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498
• Resistance Properties: Watertight
• IP Rating: IP69K
