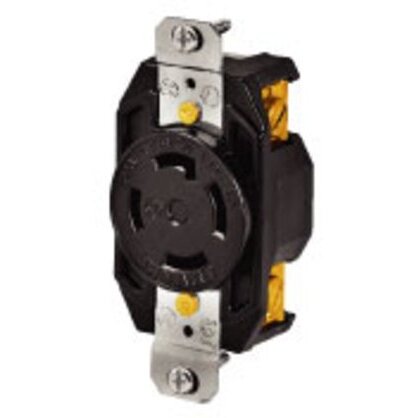

Bryant 71730FR Flush Receptacle 30A 3-Phase 600V AC L17-30R

Product Description

The BRYANT 71730FR is an industrial-grade flush receptacle, designed for heavy-duty applications. Rated at 30A, 3-Phase Delta 600V AC, it features a 3-pole, 4-wire grounding configuration and L17-30R NEMA rating. The screw terminal ensures secure connectivity for #14 to #8 AWG conductors.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade flush receptacle with robust construction and secure wiring terminals for demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71730FR
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 71730FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786697638
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 3 Phase 600 VAC
• Voltage Rating Description: 3 Phase 600V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L17-30R
• Standards - RoHS Compliance Status: CM
• Brand: BRYANT
• Model Number: 71730FR
• Current: 30 A AMP
• Voltage: 600 V-AC
• # Poles: 3P
• # Wires: 4W
• Category: Plug/Receptacle
• MPN: 71730FR
• Product Brand: BRYANT
• Part #: 71730FR
