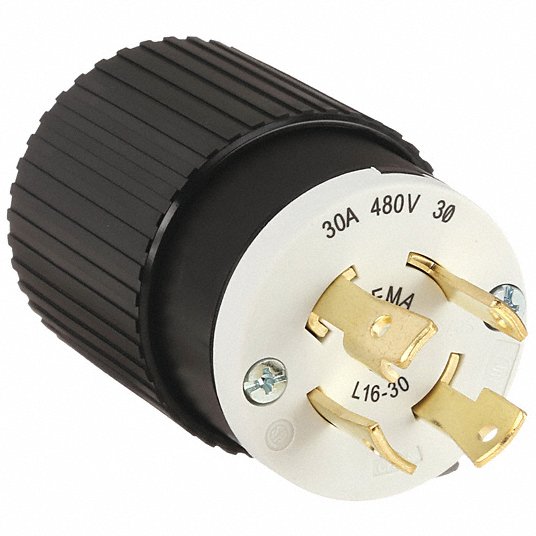

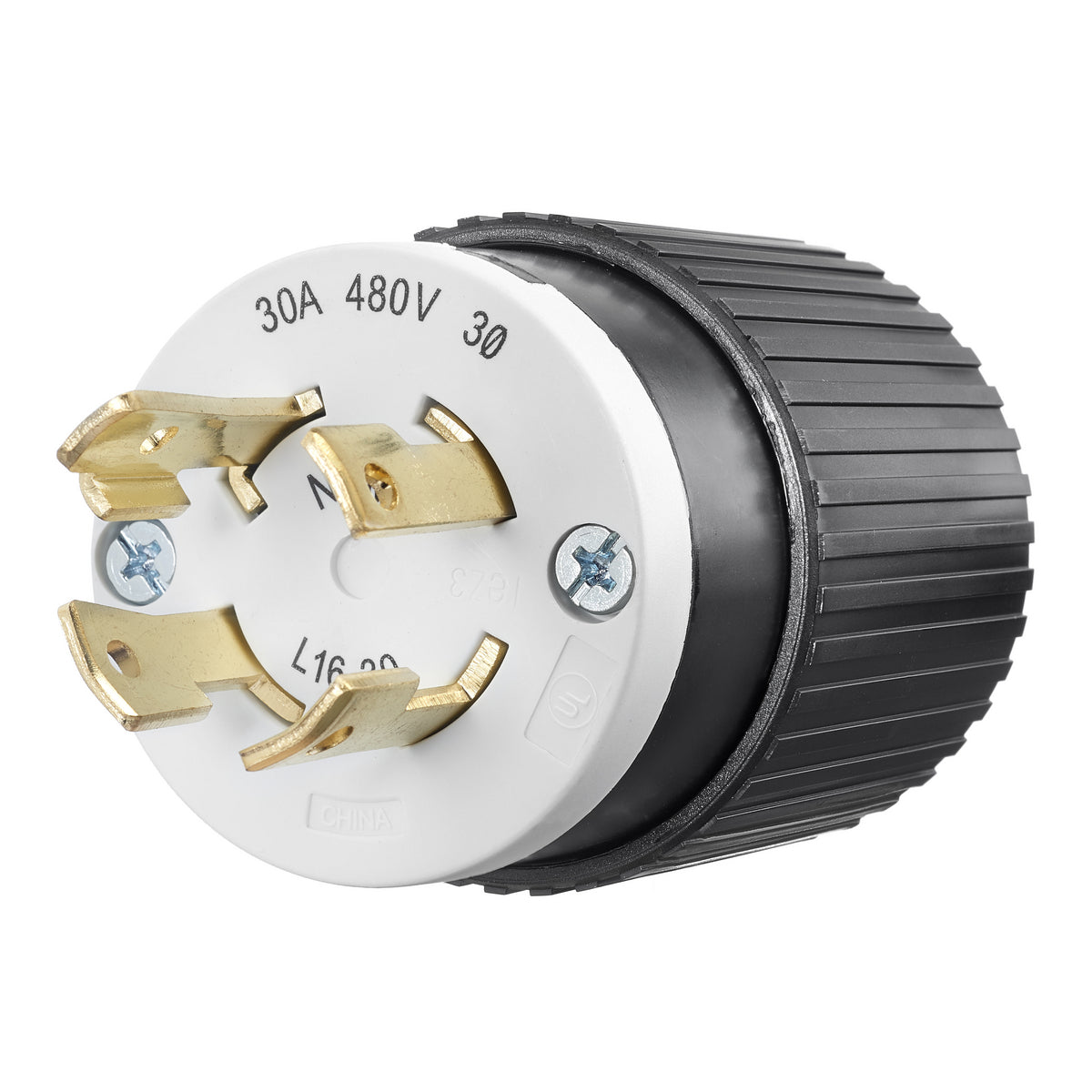

Bryant 71630NP Locking Devices Industrial Male Plug 30A 3-Phase 480V AC L16-30P

Product Description

The BRYANT 71630NP is an industrial male plug designed for secure cable-to-plug connections in industrial and commercial power applications. This locking plug is ideal for environments where vibration or equipment movement could disrupt connections. Rated at 30A, 3-Phase Delta 480V AC, it features screw terminals for easy wiring.

• Wide-rib, non-slip hand grip
• Configuration-specific plug face prevents contaminant infiltration
• Internal self-centering Triple Gripper cord grip

Product Highlights

The Bryant 71630NP locking plug ensures reliable power connections in demanding industrial settings. Its robust design and secure grip make it suitable for plant floors and manufacturing facilities.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71630NP
• Country of Origin: CN

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 71630NP
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Triple Gripper Nylon Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786697225
• Dimensions: 2.13 in x 2.13 in x 2.86 in
• Display Size: Standard Sized
• Height: 2.86 in
• Length: 2.13 in
• Width: 2.13 in
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 3 Phase 480 VAC
• Voltage Rating Description: 3 Phase 480 VAC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L16-30P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Listed Portables
• ARRA Compliant: Y
• Buy American Compliant: Y
• Cord Diameter: 0.465 to 1.15 in
• Country of Origin: CN
• Grade: Industrial
• Replaced Catalog Number: 71630NPC
• Returnable: Y
• Temperature Rating: -40 to 60 °C
• Terminal Type: Screw
• UNSPSC: 39121402
• Wattage: 14,400 W
• Housing Color: Black; White
• NEMA Plug Configuration: L16-30P
• Polarized: Yes
• Resistance Properties: Chemical Resistant; Impact Resistant
• Wiring Style: Standard
• Face Diameter: 1.89 in
• For Maximum Cable Diameter: 1.15 in
• For Minimum Cable Diameter: 0.465 in
• Grounding: Grounded
• Horsepower Rating: 10 hp
• IP Rating: IP20
• Maximum Wire Size: 8 AWG
• Minimum Wire Size: 18 AWG
• Outside Diameter: 2.13 in
• Overall Length: 2.13 in
• Power Indicating Light: No
• Shrouded: No
• Standards: NEMA WD-1; NEMA WD-5; UL 498
• Wire Connection Type: Screw Terminals
• Frequency Rating: 50/60 Hz
