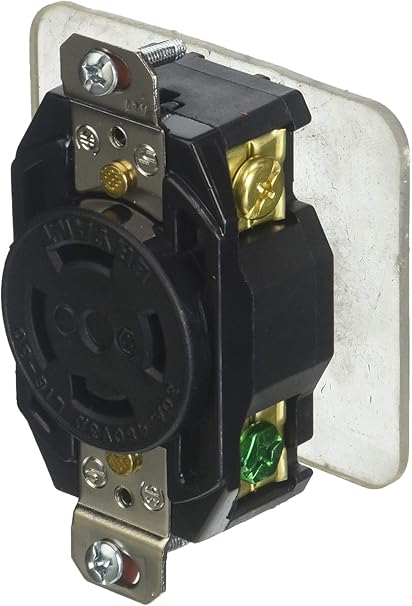

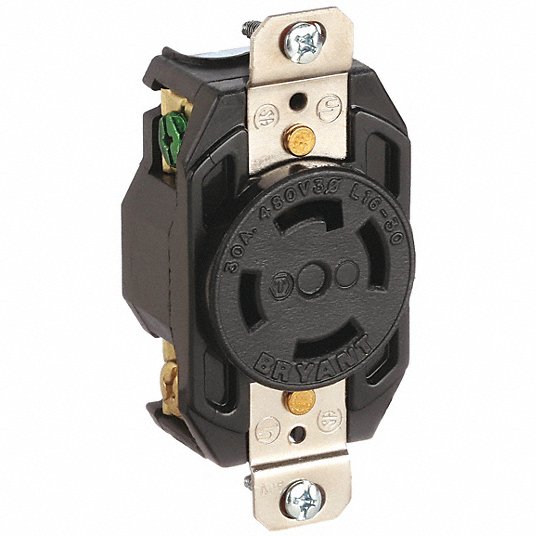

Bryant 71630FR Flush Receptacle 30A 3-Phase Delta 480V AC L16-30R

Product Description

The BRYANT 71630FR is an industrial-grade flush receptacle, designed for heavy-duty applications. This 30A, 3-Phase Delta, 480V AC receptacle features combination back and side wiring terminals that accept #14 through #8 AWG solid or stranded conductors. The NEMA rating and configuration are molded into the face for easy identification.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade flush receptacle with combination wiring terminals and corrosion-resistant mounting straps.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71630FR
• Country of Origin: United States

Technical Specifications

• Catalog Number: 71630FR
• Application: Outlet
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786697133
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 480V AC
• Voltage Rating Description: 3 Phase 480V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L16-30R
• Standards - RoHS Compliance Status: CM
• Brand: Bryant Electric
• Compatible Devices: All
• Voltage: 480
• Amperage: 30
• Connector Type: Plug-In
• Total Power Outlets: 1
• Specification Met: NEMA
• Model: 71630FR
• Part Number: 71630FR
• Included Components: Electrical Receptacle, Electrical Outlet
• Unit Count: 1.0 Count
• Item Type Name: Electrical Receptacle, Electrical Outlet
• Mounting Style: Flush
• Plate Design: Single Outlet
• Suitable For: Interior, Wall
• Current Type: AC
• Number in Pack: 1
• Number of Outlets: 1
• Resistance Properties: Impact Resistant
• Country of Origin: United States
• Connection Orientation: Straight
• Contact Material: Copper Alloy
• Flange Material: Composite
• Flange Type: Non-Flanged
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.95 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 10 hp
• Housing Material: Composite
• Hub Type: Dead End
• IP Rating: Not Rated
• Includes Mounting Hardware: Yes
• Maximum Wire Size: 8 AWG
• Midget Locking: No
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.28 in
• Mount Type: Flush
• NEMA Configuration: L16-30
• NEMA Receptacle Configuration: L16-30R
• Number of Gangs: 1
• Polarized: Yes
• Standards: UL 498
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121406
