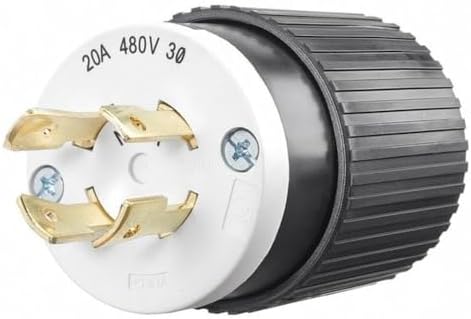

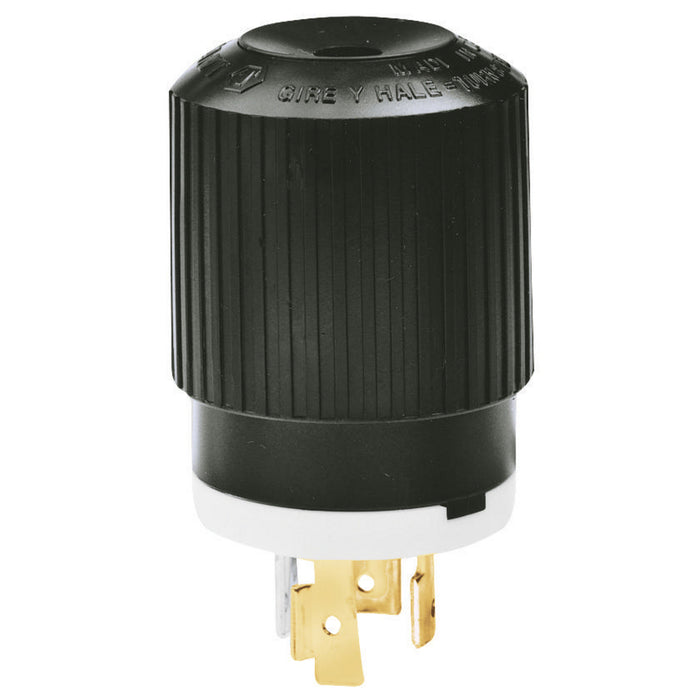

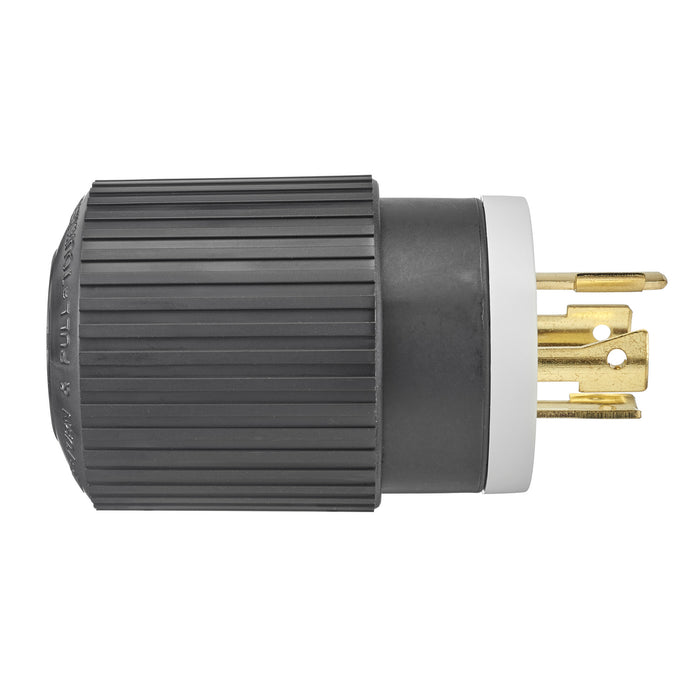

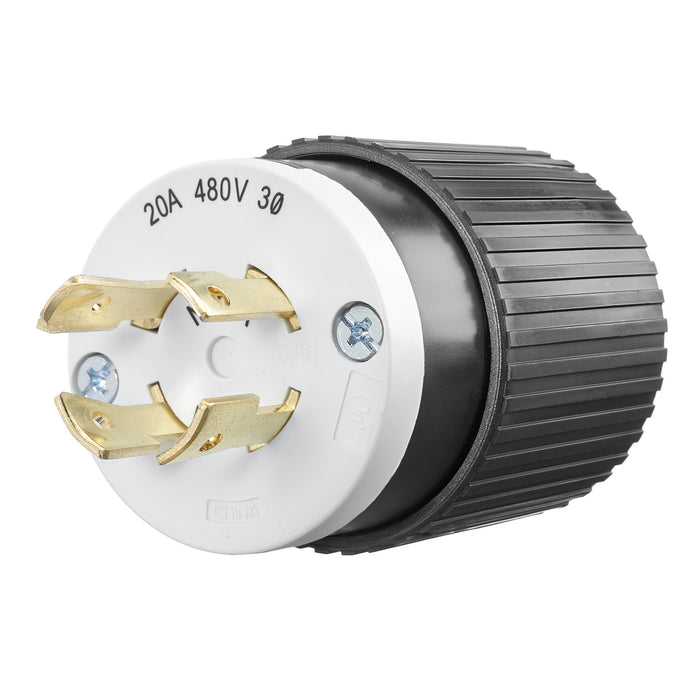

Bryant 71620NP Tech Spec Industrial Grade Locking Plug, 20 Amp, 3-Phase 480v AC

Product Description

The Bryant 71620NP is an industry-standard heavy-duty locking plug. Designed for reliable and safe electrical connections, it features resilient dust seal that surrounds cord, helping to prevent moisture and contaminants from entering wiring chamber. It is suitable for industrial applications requiring a secure and durable plug.

• Resilient dust seal surrounds cord, helping to prevent moisture and contaminants from entering wiring chamber
• Internal “self-centering” triple gripper cord grip with “radius teeth” design provides secure cord retention and reduces installation time
• Transparent Terminal cover, extended “teardrop” wiring pockets and backed out “captive” Terminal screws simplify wiring

Product Highlights

Industrial grade locking plug with secure cord retention and simplified wiring for demanding electrical connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71620NP

Technical Specifications

• Brand: Bryant Electric
• Material: Nylon
• Connector Type: Plug in
• Specification Met: NEMA
• Manufacturer Part Number: 71620NP
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Locking Devices, Industrial, Male Nylon Plug,20A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-20P, Screw Terminal, Black and White
• Current Rating: 20 A
• Number of Poles: 3
• Number of Wires: 4
• Voltage: 480 VAC
• Phase: 3
• Body Type: Straight
• Connection Type: Plug

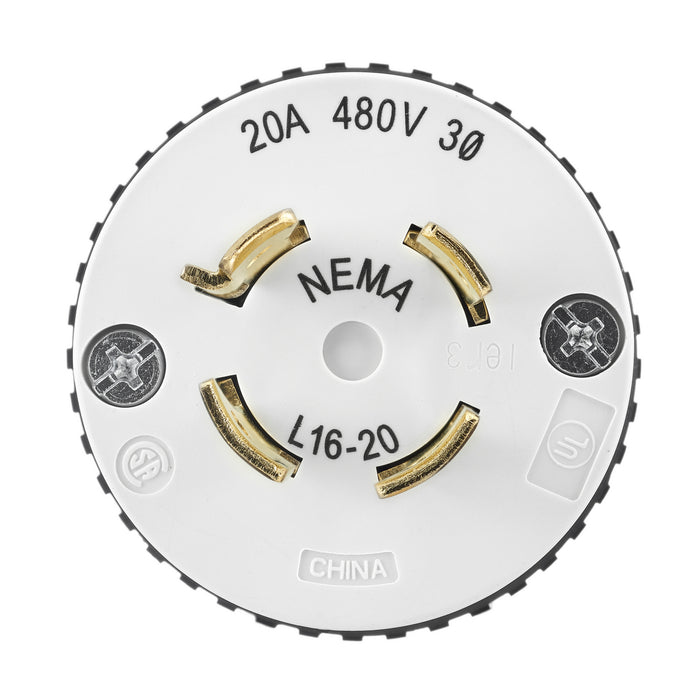

• NEMA Configuration: L16-20P
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Maximum Input Current: 16 -20 A
• Features: Locking Plug
• Type: Electrical Plug
• Resistance Properties: Impact Resistant
• Output Voltage: 480 V
• Depth: 2.700
• Width: 2.700
• UPC Code: #781786696921
