Bryant 71620NC Locking Devices Industrial Female Connector Body 20A 3-Phase Delta 480V AC L16-20R

Product Description

The BRYANT 71620NC is an industrial-grade female nylon connector body. Rated at 20A, 3-Phase Delta 480V AC, this 3-Pole 4-Wire Grounding connector features an L16-20R NEMA configuration and screw terminals. Constructed from impact/chemical resistant nylon, it ensures secure cord retention with its internal Triple Gripper cord grip.

• Face and body feature alignment keys for easy assembly

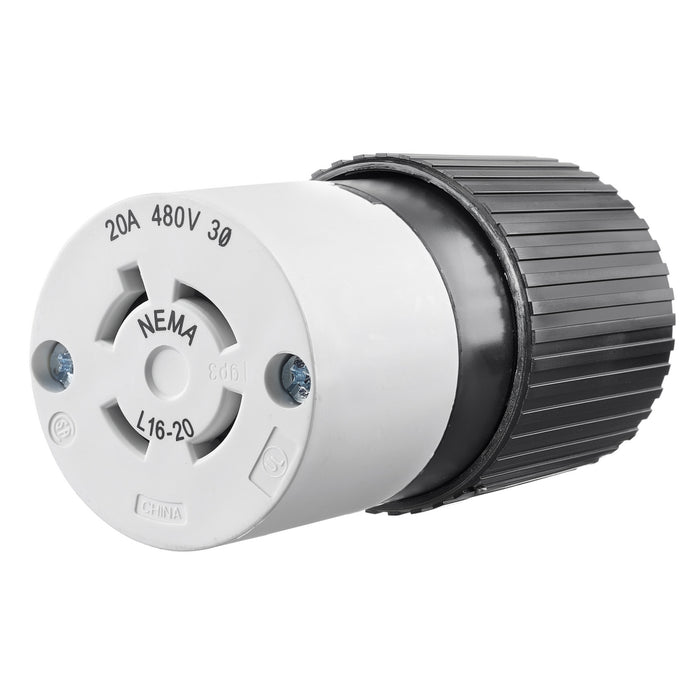

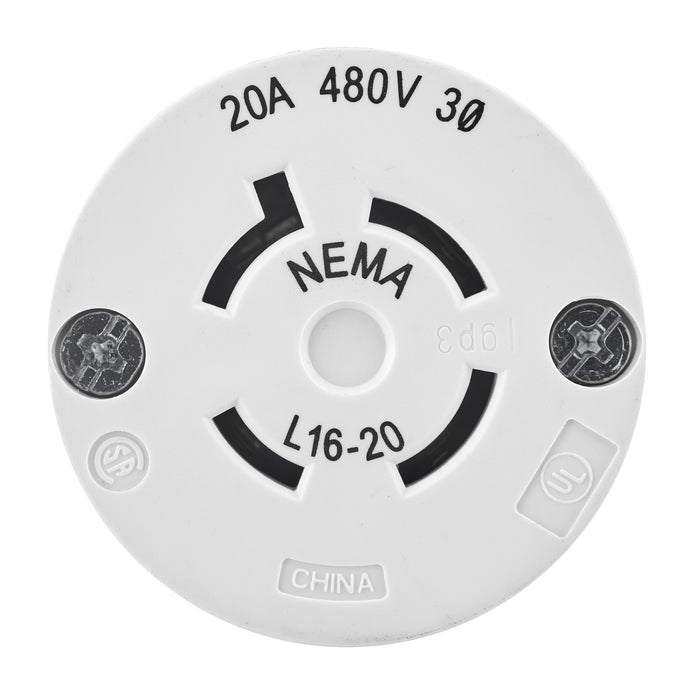

• Amperage, voltage and NEMA configuration imprinted on face for easy identification
• Impact/chemical resistant, toughened nylon construction

Product Highlights

Ideal for heavy-duty industrial applications, this connector provides reliable and safe electrical connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71620NC
• Country of Origin: United States

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: 71620NC
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 20A Triple Gripper Nylon Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Temperature Rating: Maximum Continuous: 75 egories: Bryant 71620NC Locking Devices Industrial Female Connector Body 20A 3-Phase Delta 480V AC L16-20R
• description: {'main_description': 'The BRYANT 71620NC is an industrial-grade female nylon connector body. Rated at 20A, 3-Phase Delta 480V AC, this 3-Pole 4-Wire Grounding connector features an L16-20R NEMA configuration and screw terminals. Constructed from impact/chemical resistant nylon, it ensures secure cord retention with its internal Triple Gripper cord grip.', 'bullet_points': ['Face and body feature alignment keys for easy assembly', 'Amperage, voltage and NEMA configuration imprinted on face for easy identification', 'Impact/chemical resistant, toughened nylon construction'], 'product_highlights': 'Ideal for heavy-duty industrial applications, this connector provides reliable and safe electrical connections.'}
• validated_weight: 0.4
• validated_dimensions: 3.9 x 1.89 x 2.13 inches
• dimension_details: {'length': 3.9, 'width': 1.89, 'height': 2.13}
• removed_specifications: [{'key': 'Display Size', 'value': 'Standard Sized Product', 'reason': 'Generic specification'}, {'key': 'Item Weight', 'value': '1 pounds', 'reason': 'Duplicated by Weight'}, {'key': 'Product Dimensions', 'value': '3.9 x 1.89 x 2.13 inches', 'reason': 'Duplicated by Dimensions'}, {'key': 'Item model number', 'value': '71620NC', 'reason': 'Duplicated by Catalog Number'}, {'key': 'Is Discontinued By Manufacturer', 'value': 'No', 'reason': 'Non-product specification'}, {'key': 'Item Package Quantity', 'value': '1', 'reason': 'Non-essential specification'}, {'key': 'Measurement System', 'value': 'inch', 'reason': 'Redundant as all dimensions are in inches'}, {'key': 'Included Components', 'value': 'Electrical Connector Body', 'reason': 'Redundant information'}, {'key': 'Batteries Required?', 'value': 'No', 'reason': 'Not applicable to this product'}, {'key': 'Warranty Description', 'value': 'No Warranty', 'reason': 'Warranty information'}, {'key': 'ASIN', 'value': 'B003A4F67A', 'reason': 'Amazon Standard Identification Number'}, {'key': 'For Environment', 'value': 'Dry', 'reason': 'Duplicated by Environmental Conditions'}, {'key': 'For Location', 'value': 'Indoor', 'reason': 'Duplicated by Environmental Conditions'}, {'key': 'NEMA Enclosure Rating', 'value': 'Not Rated', 'reason': 'Not relevant for a connector body'}, {'key': 'Power Indicating Light', 'value': 'No', 'reason': 'Not applicable to this product'}, {'key': 'Shrouded', 'value': 'No', 'reason': 'Not applicable to this product'}, {'key': 'UNSPSC', 'value': '39121421', 'reason': 'Universal Standard Products and Services Code'}, {'key': 'Family Series', 'value': 'Bryant Electric Plugs & Receptacles', 'reason': 'Marketing information'}, {'key': 'Watertight', 'value': 'No', 'reason': 'Not applicable to this product'}, {'key': 'Isolated Ground', 'value': 'No', 'reason': 'Not applicable to this product'}, {'key': 'Approvals', 'value': 'CSA, UL', 'reason': 'Duplicated by Standards'}, {'key': 'Net Weight', 'value': '0.325 lbs', 'reason': 'Duplicated by Weight'}, {'key': 'Gross Weight', 'value': '0.4 lbs', 'reason': 'Duplicated by Weight'}, {'key': 'Weight', 'value': '0.4 lb', 'reason': 'Duplicated by Weight'}]
• weight_validation: {'is_valid': True, 'reason': 'Weight is reasonable for the product type and dimensions.', 'estimated_weight': None, 'estimation_basis': None}
• dimensions_validation: {'is_valid': True, 'reason': 'Dimensions are reasonable for the product type.'}
• overall_confidence: High
