Bryant 71620FR Locking Devices Industrial Flush Receptacle 20A 3-Phase Delta 480V AC L16-20R

Product Description

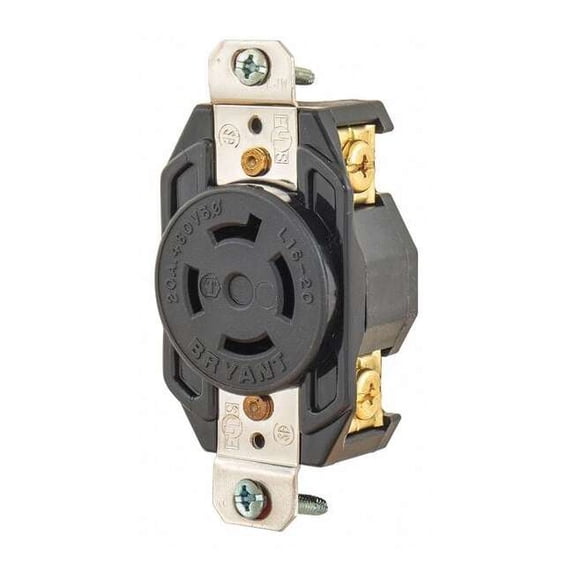

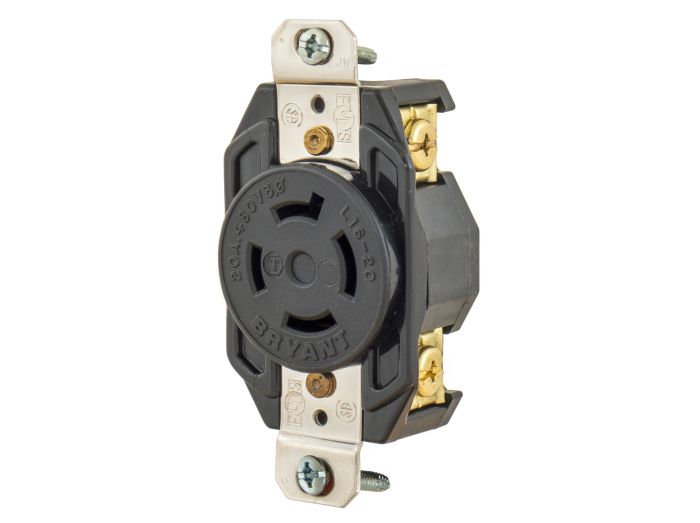

The BRYANT 71620FR is an industrial flush nylon receptacle, designed for locking devices. Rated at 20A, it supports 3-Phase Delta 480V AC, with a 3-Pole 4-Wire grounding configuration and L16-20R NEMA rating. Features screw terminals for secure connectivity. Ideal for heavy-duty industrial applications requiring a robust and reliable power connection.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade receptacle with robust construction and secure wiring for demanding applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71620FR
• Country of Origin: China

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 71620FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786696839
• Amperage Rating: 20 A
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Three Phase
• Voltage Rating: 480V AC
• Voltage Rating Description: 3 Phase 480V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L16-20R
• Standards - RoHS Compliance Status: CM
• Brand: BRYANT
• MPN: XA0034
• Manufacturer Part Number: 71620FR
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 480 VAC
• Body Type: Straight
• Connection Type: Receptacle
• NEMA Configuration: L16-20
• Watertight: No
• Isolated Ground: No
• Color: Black
• Approvals: CSA, UL
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• Contact Material: Copper Alloy
• Flange Material: Composite
• Flange Type: Non-Flanged
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 5 hp
• Housing Color: Black
• Housing Material: Nylon
• Hub Type: Dead End
• IP Rating: Not Rated
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Maximum Wire Size: 8 AWG
• Midget Locking: No
• Minimum Wire Size: 14 AWG
• Mount Type: Flush
• NEMA Enclosure Rating: Not Rated
• NEMA Receptacle Configuration: L16-20R
• Number of Gangs: 1
• Number of Outlets: 1
• Polarized: Yes
• Resistance Properties: Corrosion Resistant
• Shrouded: No
• Standards: UL 498
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121406
• Amps: 20 Amps
• Volts: 480 VAC
