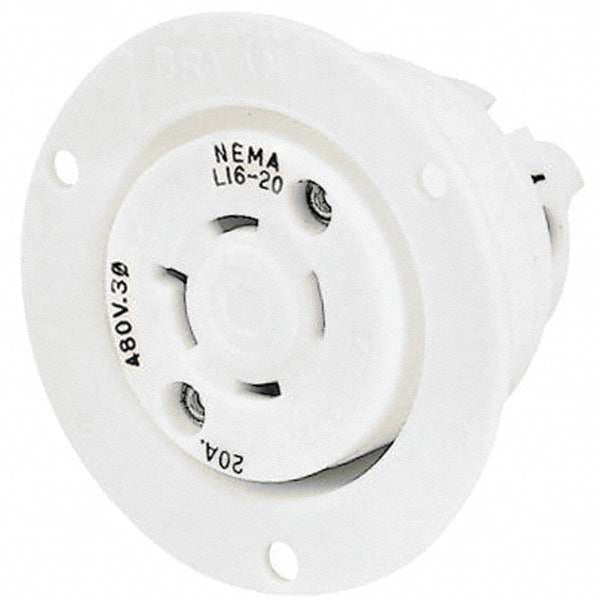

Bryant 71620ER Flanged Receptacle 20A 3-Phase Delta 480V AC L16-20R

Product Description

The BRYANT 71620ER is an industrial flanged receptacle designed for heavy-duty applications. Rated at 20A, 3-Phase Delta 480V AC, it features a 3-pole, 4-wire grounding configuration and L16-20R NEMA rating. The receptacle has screw terminals and impact resistant thermoplastic construction.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws
• Mounting screws included
• Standard Product

Product Highlights

Industrial flanged receptacle with 20A, 3-Phase Delta 480V AC, 3-Pole, 4-Wire Grounding, and L16-20R NEMA rating.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71620ER
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 71620ER
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Flanged Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: Flanged Receptacle
• UPC: 781786696808
• Amperage Rating: 20 A
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Three Phase
• Voltage Rating: 3 Phase 480 VAC
• Voltage Rating Description: 3 Phase 480V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L16-20R
• Brand: Bryant
• MPN: 71620ER
• Receptacle Type: Receptacle
• Gender: Female
• Flange Style: Flanged
• Resistance Features: Impact-Resistant
• Grade: Industrial
• Grounding Style: Grounding
• Standards: UL Listed; CSA Certified
• Nema Configuration: L16-20R
• Maximum Cord Diameter: 29.20 mm
• UNSPSC Code: 39121400
