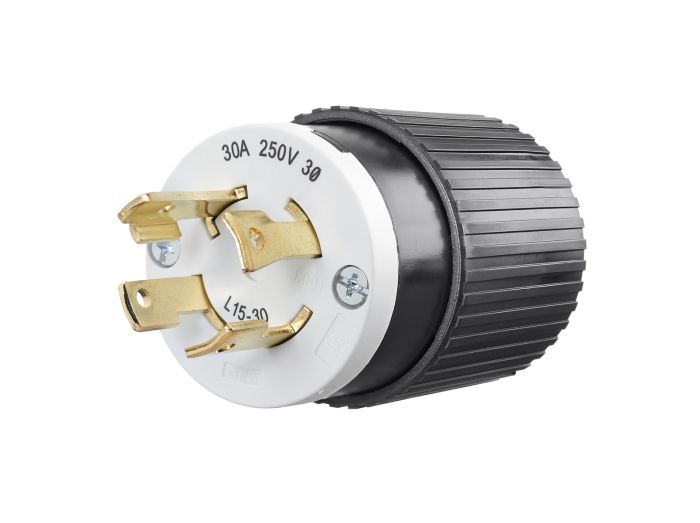

Bryant 71530NP Locking Plug 250V AC 30 A L15-30P

Product Description

The BRYANT 71530NP is a locking plug designed for secure cable-to-plug connections in industrial and commercial power applications. It is suitable for environments where vibration or movement could disrupt connections. Rated at 250V AC and 30A, this plug features screw terminals for wire connections and is built with chemical and impact-resistant composite housing.

• Provides secure cable-to-plug connections
• Suitable for industrial and commercial power applications
• Features chemical and impact-resistant composite housing

Product Highlights

Ensures reliable power connections in demanding environments with its robust design and secure locking mechanism.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71530NP
• Country of Origin: China

Technical Specifications

• Brand: BRYANT
• Manufacturer Part Number: 71530NP
• Body Length: 2.13 in
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• Current Rating: 30 A
• Face Diameter: 1.89 in
• For Environment: Dry
• For Maximum Cable Diameter: 1.15 in
• For Minimum Cable Diameter: 0.465 in
• Grounding: Grounded
• Horsepower Rating: 3 hp
• Housing Material: Composite
• IP Rating: IP20
• Maximum Wire Size: 8 AWG
• Minimum Wire Size: 18 AWG
• NEMA Configuration: L15-30P
• Number of Blades: 4
• Number of Poles: 3
• Outside Diameter: 2.13 in
• Overall Length: 2.13 in
• Phase: Three
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: NEMA WD-1; NEMA WD-5; UL 498
• Voltage Rating: 250V AC
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121402
• Application: Extra Heavy Duty Industrial
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Triple Gripper Nylon Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786696228
• Height: 2.86 in
• Length: 2.13 in
• Width: 2.13 in
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Voltage Rating Description: 3 Phase 250 VAC
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L15-30P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Listed Portables
• Voltage: 250 Volts
• Amperage: 30 Amps
• Specification Met: NEMA
