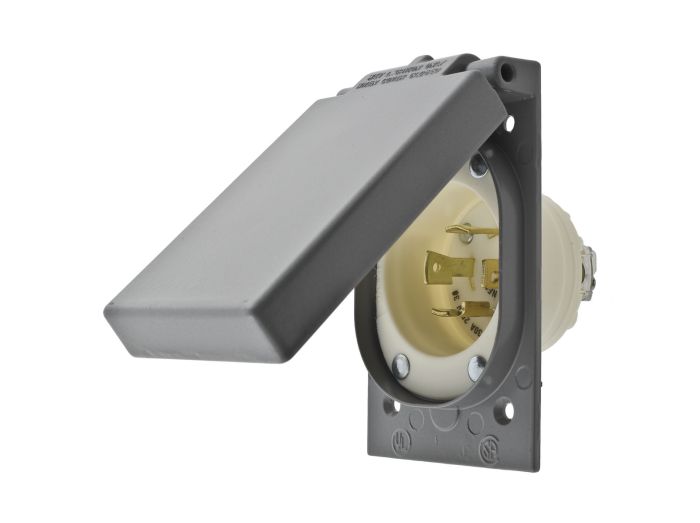

Bryant 71530MBWP Flanged Inlet 30A 3-Phase Delta 250V AC L15-30P

Product Description

The BRYANT 71530MBWP is an industrial flanged inlet, designed for 3-Phase Delta 250V AC systems. This 3-pole, 4-wire grounding inlet features screw terminals and a weatherproof cover. Constructed with impact-resistant thermoplastic, it ensures durability and reliable performance in demanding environments. Ideal for heavy-duty industrial applications requiring secure and weather-protected power connections.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• Mounting screws included

Product Highlights

Industrial flanged inlet with weatherproof cover, designed for 3-Phase Delta 250V AC systems.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71530MBWP
• Country of Origin: China

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 71530MBWP
• Color: White
• Environmental Conditions: Weather Resistant
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Weather Protective Power Inlet
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Weatherprotective
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact
• Type: Flanged Inlet
• UPC: 781786696174
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Dielectric Strength: Withstands 3500V
• Voltage Rating: 250V AC
• Voltage Rating Description: 3 Phase 250 VAC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L15-30P
• Manufacturer Part Number: 71530MBWP
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Phase: 3
• Body Type: Straight
• Connection Type: Flanged Inlet
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Ground: Grounding
• Cover Type: Weather-Resistant Cover
• Resistance Properties: Weather Resistant
• Flange Type: Flanged
• NEMA Receptacle Configuration: L15-30P
