Bryant 71530FR Flush Receptacle 30A 3-Phase Delta 250V AC L15-30R

HUBBELL
Brand: HUBBELL
SKU: 71530FR
Availability: In Stock

Ships same day if ordered by 12 pm
$95.12
$95.12
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

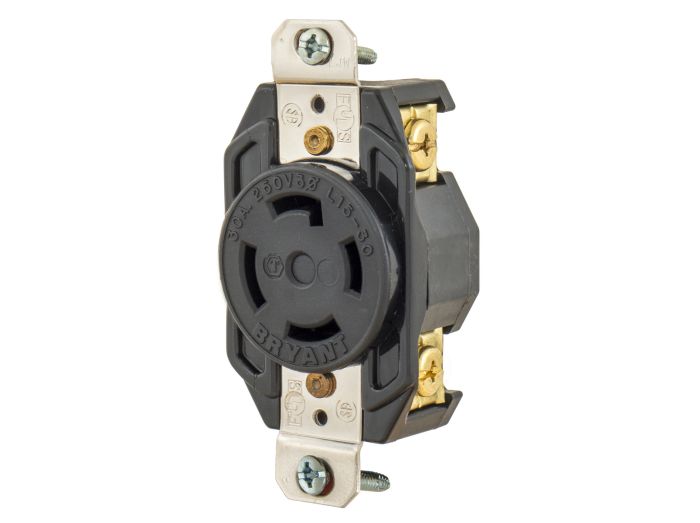

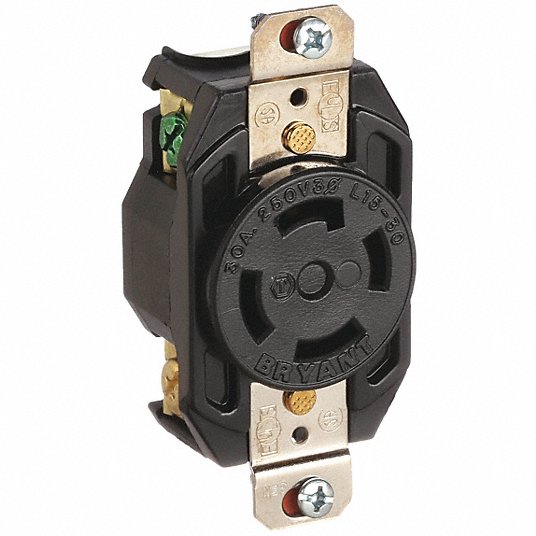

The BRYANT 71530FR is an industrial-grade flush receptacle, designed for heavy-duty applications. This 30A, 3-Phase Delta, 250V AC receptacle features a 3-pole, 4-wire grounding configuration and screw terminals. It supports #14 to #8 AWG solid or stranded conductors and has a durable composite construction.

  • Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
  • Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
  • NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade flush receptacle with combination wiring terminals and corrosion-resistant mounting straps.

Product Information

Standard Information

  • Brand: BRYANT
  • Manufacturer Part Number: 71530FR
  • Country of Origin: USA
Technical Specifications
Application
Extra Heavy Duty Industrial Specification Grade
Catalog Number
71530FR
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator
Yes
Item Type
30A Single Nylon Receptacle
Material
Composite
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Bryant
Style
Single Receptacle
Type
Wiring Devices > Locking Devices > Locking Receptacles
UPC
781786696136
Amperage Rating
30 A
Connectivity
Terminal Screws
Current Amperage Description
30 Amp
Current Rating
30 A
Phase
Three Phase
Voltage Rating
250V AC
Voltage Rating Description
3 Phase 250V AC
Number Of Poles
3-Pole
Number Of Wires
4-Wire
Wire Size
#14 AWG to #8 AWG
Nema Rating
L15-30R
Standards - RoHS Compliance Status
CM
Compatible Series
Twist Lock
Connection Orientation
Straight
Contact Material
Copper Alloy
Flange Material
Composite
Flange Type
Non-Flanged
For Environment
Dry
For Location
Indoor
For Maximum Cable Diameter
0.95 in
For Minimum Cable Diameter
0.3 in
Grounding
Grounded
Horsepower Rating
3 hp
Housing Color
Black
Housing Material
Composite
Hub Type
Dead End
IP Rating
Not Rated
Includes
Mounting Hardware
Includes Mounting Hardware
Yes
Maximum Wire Size
8 AWG
Midget Locking
No
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.28 in
Mount Type
Flush
NEMA Configuration
L15-30
NEMA Receptacle Configuration
L15-30R
Number of Gangs
1
Number of Outlets
1
Polarized
Yes
Resistance Properties
Corrosion Resistant
Shrouded
No
Standards
UL 498
Wire Connection Type
Screw Terminals
Wiring Style
Standard
UNSPSC
39121406
Manufacturer
Bryant Electric
Family Series
Bryant Electric Plugs & Receptacles
Voltage
250 VAC
Body Type
Straight
Connection Type
Receptacle
Watertight
No
Isolated Ground
No
Approvals
CSA, UL
Features
Locking Receptacle, Current Rating 30 A, Housing Color Black, Hou
Country of Origin
China
