Bryant 71520NP Locking Devices Industrial Male Plug 20A 3-Phase Delta 250V AC L15-20P

Product Description

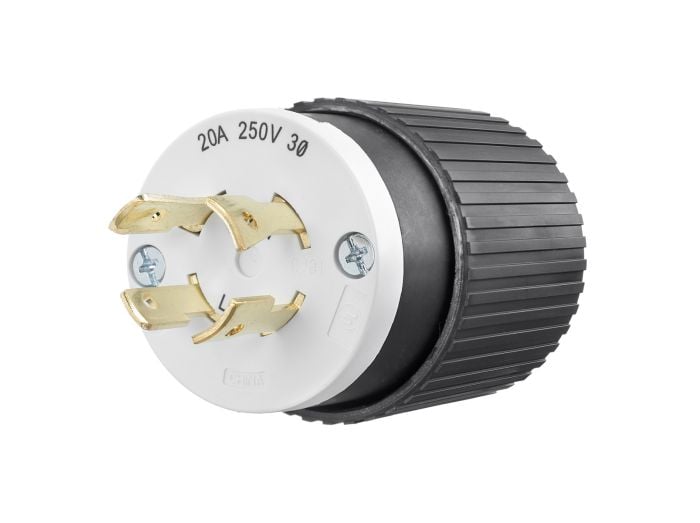

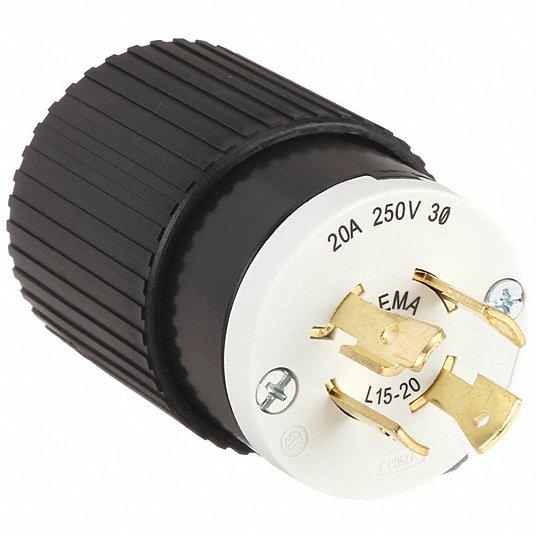

The BRYANT 71520NP is an industrial male nylon plug designed for secure cable-to-plug connections in industrial and commercial power applications. It is rated for 20A, 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, and features a L15-20P NEMA configuration. Commonly used in environments where vibration or equipment movement could disrupt connections.

• Hand grip features wide-rib, non-slip design
• Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
• Captive, combination Slot/Phillips assembly screws

Product Highlights

This locking plug provides secure connections for industrial and commercial power applications, ideal for environments prone to vibration.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71520NP
• Country of Origin: China

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 71520NP
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Triple Gripper Nylon Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786695924
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Three Phase
• Voltage Rating: 250V AC
• Voltage Rating Description: 3 Phase 250 VAC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L15-20P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Listed Portables
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Body Type: Straight
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Body Length: 2.13 in
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• Face Diameter: 1.89 in
• For Environment: Dry
• For Maximum Cable Diameter: 1.15 in
• For Minimum Cable Diameter: 0.465 in
• Grounding: Grounded
• Horsepower Rating: 3 hp
• Housing Material: Nylon
• IP Rating: IP20
• Maximum Wire Size: 8 AWG
• Midget Locking: No
• Minimum Wire Size: 18 AWG
• NEMA Configuration: L15-20
• Number of Blades: 4
• Outside Diameter: 2.13 in
• Overall Length: 2.13 in
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: NEMA WD-1; NEMA WD-5; UL 498
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121402
