Bryant 71520NC Locking Devices Industrial Female Connector Body 20A 3-Phase Delta 250V AC L15-20R

Product Description

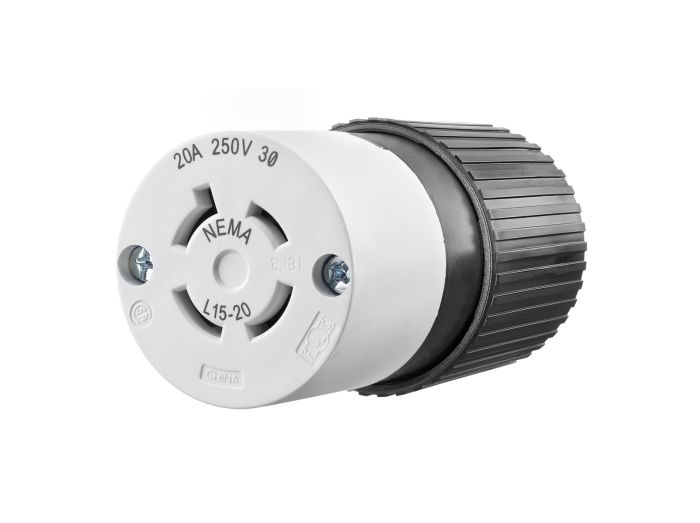

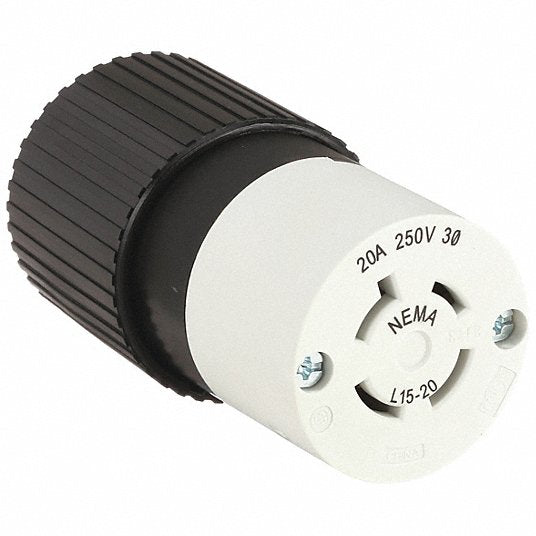

The BRYANT 71520NC is an industrial female nylon connector body. Rated at 20A 3-Phase Delta 250V AC, it features a 3-pole, 4-wire grounding configuration and L15-20R NEMA rating. Designed with screw terminals and alignment keys for easy assembly, it is suitable for heavy-duty industrial applications.

• Alignment keys for easy assembly
• Amperage, voltage and NEMA configuration imprinted on face
• Impact/chemical resistant, toughened nylon construction

Product Highlights

This Bryant locking connector is ideal for inline connections to supply equipment with power, ensuring secure cord retention in demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71520NC
• Country of Origin: China

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: 71520NC
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 20A Triple Gripper Nylon Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 781786695894
• Display Size: Standard Sized Product
• Height: 3.9 in
• Length: 2.13 in
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Voltage Rating: 250V AC
• Voltage Rating Description: 3 Phase 250 VAC
• Conductor Range: #14 AWG to #12 AWG
• Number of Conductors: 3-Wire Non-Grounding
• Number Of Poles: 3
• Number Of Wires: 4
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L15-20R
• Standards - RoHS Compliance Status: CM
• Output Voltage: 250 V
• Brand: BRYANT
• Cap Type: No Cap or Cover
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Material: Nylon
• IP Rating: IP20
• Maximum Operating Temperature: 75 °C
• Minimum Operating Temperature: -40 °F
• Midget Locking: No
• NEMA Enclosure Rating: Not Rated
• Phase: Three
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: CSA Certified; UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121421
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 250 VAC
• Body Type: Straight
• Connection Type: Connector
• Watertight: No
• Isolated Ground: No
• Net Weight: 0.32 lbs
• Gross Weight: 0.25 lbs
