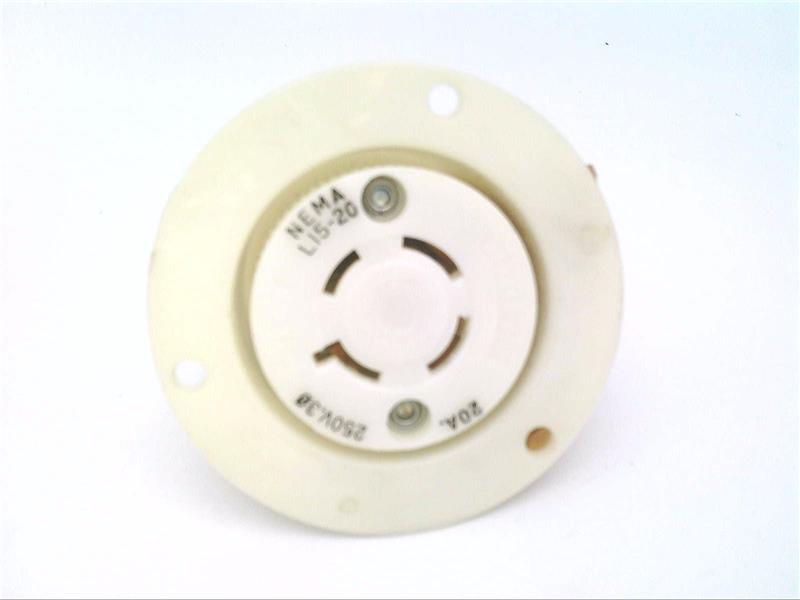

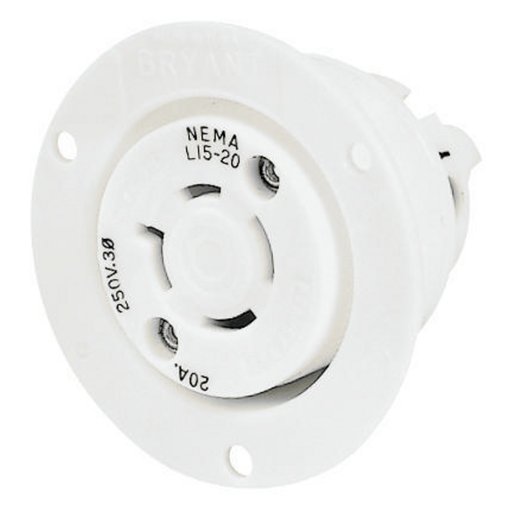

Bryant 71520ER Flanged Receptacle 20A 3-Phase Delta 250V AC L15-20R

Product Description

The BRYANT 71520ER is an industrial flanged receptacle, designed for 20A 3-Phase Delta 250V AC power systems. It features impact-resistant thermoplastic construction and backwired terminations for easy installation. Ideal for heavy-duty industrial applications requiring a robust and reliable power connection.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Industrial flanged receptacle, 20A, 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20R, Screw Terminal.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71520ER
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 71520ER
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Flanged Single
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: Flanged Receptacle
• UPC: 781786695801
• Amperage Rating: 20 A
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Three Phase
• Voltage Rating: 3 Phase 250 VAC
• Voltage Rating Description: 3 Phase 250V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L15-20R
• Input Voltage: 240 V
• Brand: BRYANT ELECTRIC, INC.
• Category: Plug/Receptacle
• Number of Outlets: 1
• Features: Locking Plug, Heavy Duty
• Output Voltage: 250 V
• Resistance Properties: Corrosion Resistant
• Special Features: Standard Product
• Description - Invoice: LKG FLG-RCPT, 20A 3PH 250V, L15-20R,WH
• Harmonization Code: 8536690200
• MSDS Flag: No
• Class Code: A08
• Image Actual Or Representative: A
• Sub Class Code: A08A172
• Base Unit of Measure: EA
