Bryant 71430NC female connector body 30A 125/250V L14-30R

Product Description

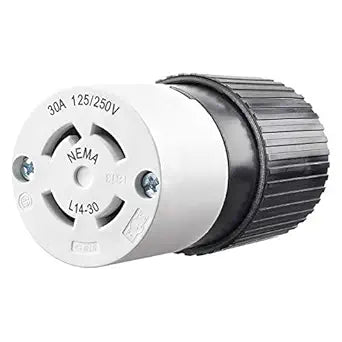

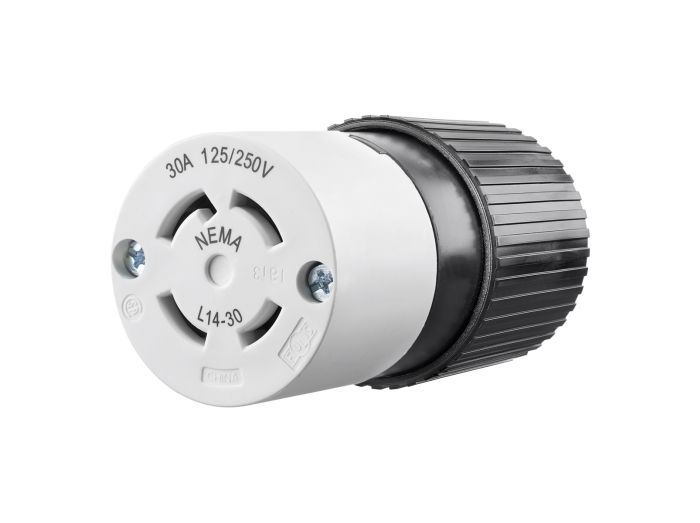

The BRYANT 71430NC is an industrial-grade female connector body designed for heavy-duty applications. Rated at 30A and 125/250V AC, this 3-pole, 4-wire grounding connector features a L14-30R NEMA configuration and screw terminals. Its durable nylon construction is chemical and impact-resistant. Alignment keys on the face and body ensure easy assembly.

• Alignment keys for easy assembly
• Amperage, voltage and NEMA configuration imprinted on face
• Impact/chemical resistant, toughened nylon construction

Product Highlights

This heavy-duty connector is ideal for industrial applications requiring a robust and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71430NC
• Country of Origin: Unknown

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: 71430NC
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Triple Gripper Nylon Connector
• Material: Composite, Nylon
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp, Traditional
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact.
• Type: Connector Body, Electrical Plug
• UPC: 781786695399
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250 VAC
• Conductor Range: #12 AWG to #8 AWG
• Number of Conductors: 4-Wire Grounding
• Number Of Poles: 3
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L14-30R
• Standards - RoHS Compliance Status: CM
• Voltage: 250 Volts
• Amperage: 30 Amps
• Specification Met: NEMA
• Poles: 3
• Ground: Grounding
• Maximum Input Current: 30 A
• Gender: Female
• Current Type: AC
• Termination Type: Clamp
• Wires: 4
• Connection Type: Turn Locking
• Interchange Number (6): HBL2713 (Hubbell)
• Number of Outlets: 1
• Features: Locking Plug
• Interchange Number (4): L1430-C (Pass & Seymour)
• Interchange Number (2): 71430NC (Bryant)
• NEMA Number: L14-30R
• Non-Domestic Product: No
• Number of Gangs: 1
• Mounting Style: Cable
• Device Type: Locking Connector
• Quantity: 1
• Input Voltage: 220 V
• Recommended Environment: Indoor
• Resistance Properties: Impact Resistant
• Output Voltage: 125 V
• Country of Origin: Unknown
• Manufacturer Part Number: 71430NC
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Body Type: Straight
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
