Bryant 71430MBWP Flanged Inlet 30A 125/250V L14-30P

Product Description

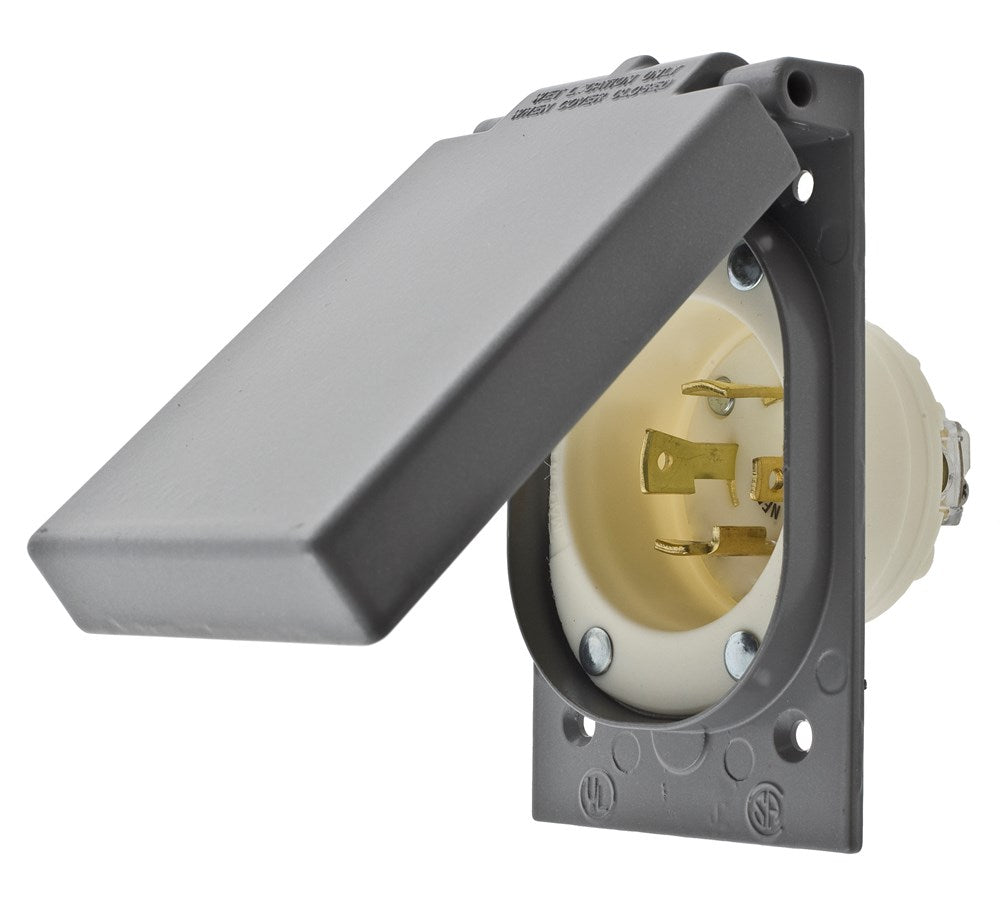

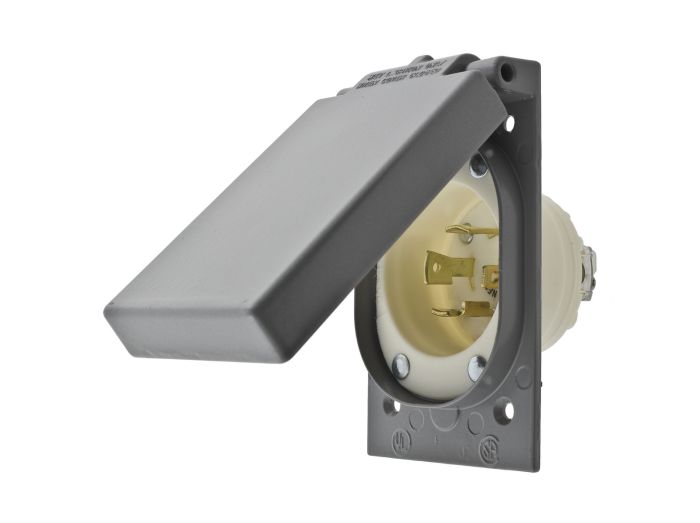

The BRYANT 71430MBWP is an industrial flanged inlet, designed for heavy-duty applications. Rated at 30A and 125/250V, this 3-pole, 4-wire grounding inlet features screw terminals and a weatherproof cover. Constructed from impact-resistant thermoplastic, it ensures durability and reliable performance in demanding environments.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Ideal for industrial use, this flanged inlet provides secure and weather-resistant power connectivity.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71430MBWP
• Country of Origin: US

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 71430MBWP
• Color: White
• Environmental Conditions: Weather Resistant
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Weather Protective Power Inlet
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Weatherprotective
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
• Type: Flanged Inlet
• UPC: 781786695375
• Dimensions: 2.88 in x 2.88 in x 2.02 in
• Height: 2.02 in
• Length: 2.88 in
• Width: 2.88 in
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Dielectric Strength: Withstands 3500V
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250 VAC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L14-30P
• Manufacturer Part Number: 71430MBWP
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC, 250 VAC
• Body Type: Straight
• Connection Type: Flanged Inlet
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Net Weight: 0.565 lbs
• Gross Weight: 0.6 lbs
• Gangs: 1
• Wattage: 7.5 kW
