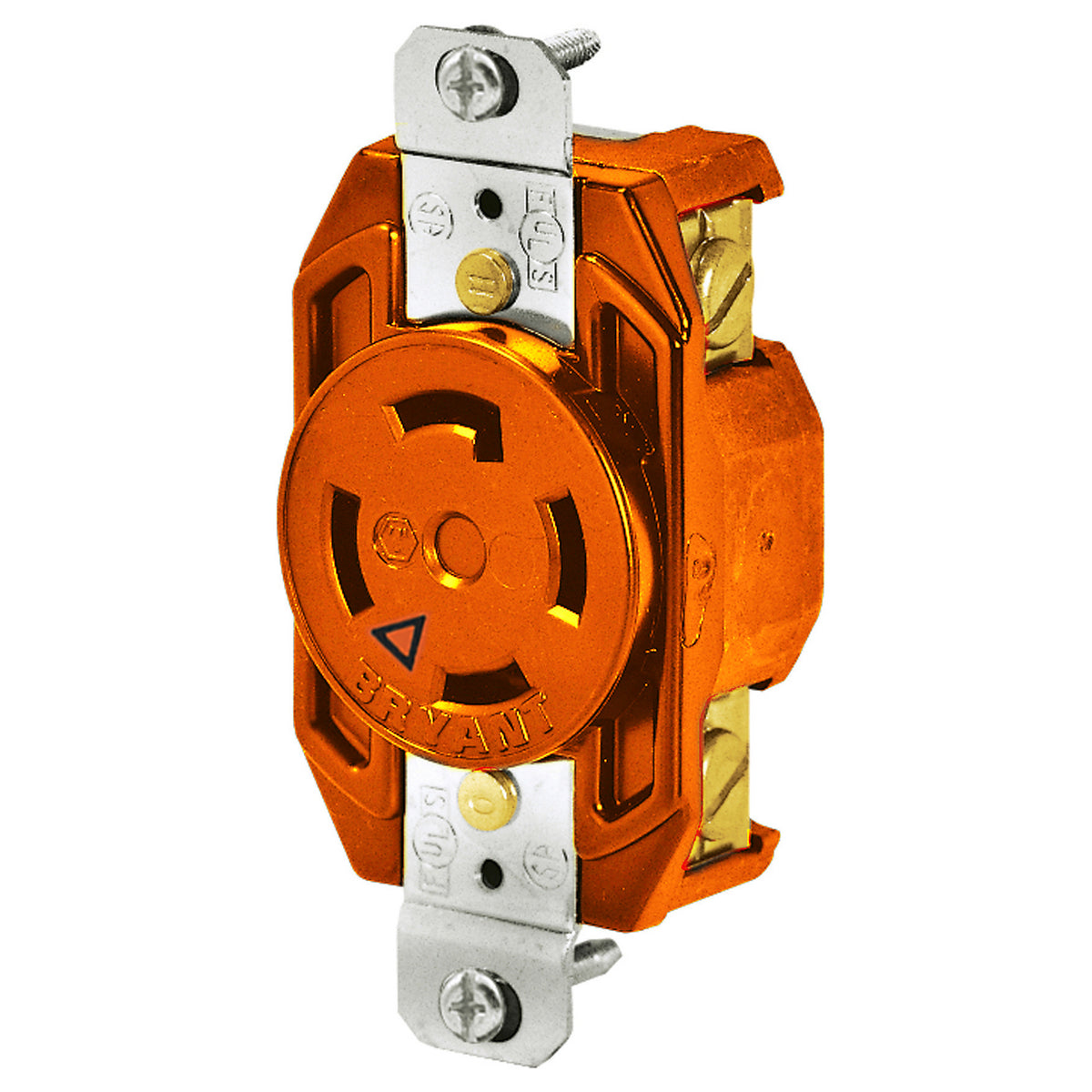

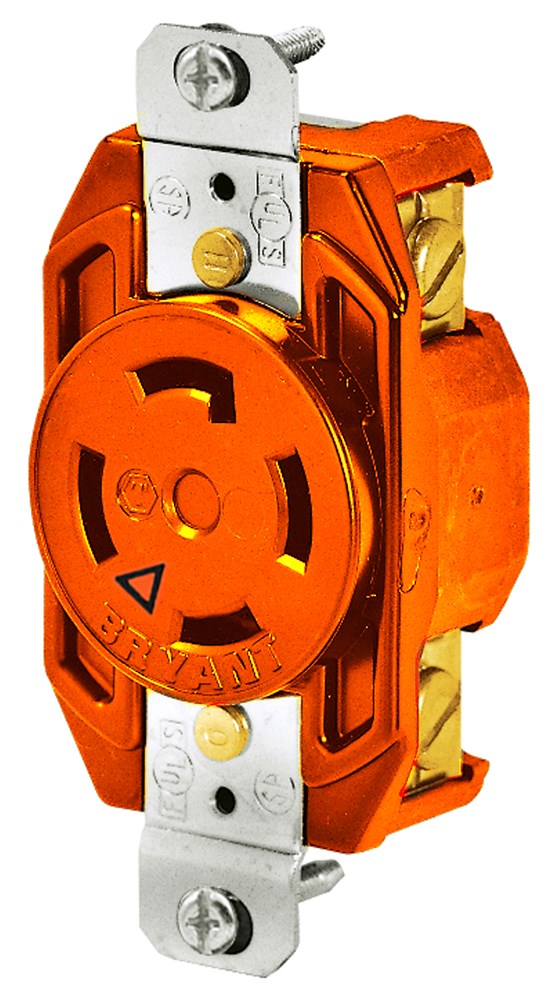

Bryant 71430IG Locking Devices, Isolated Ground, Industrial, Flush Receptacle, 30A 125/250V, L14-30R

Product Description

The BRYANT 71430IG is a locking device, isolated ground, industrial, flush receptacle. Rated at 30A 125/250V AC, it features 3-pole 4-wire grounding and L14-30R screw terminals. It limits electrical noise on the equipment grounding circuit by providing two grounding paths for the installation.

• Limits electrical noise on the equipment grounding circuit by providing two grounding paths for the installation
• Nylon deep face design
• Triple-wipe brass line contacts

Product Highlights

This receptacle is designed for heavy-duty industrial applications, ensuring a secure and isolated ground connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71430IG
• Country of Origin: US

Technical Specifications

• Application: Commercial
• Catalog Number: 71430IG
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Locking
• Style: Isolated Ground
• Type: Locking Receptacle
• UPC: 781786695344
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 125/250 V
• Voltage Rating Description: 125/250V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L14-30R
• Manufacturer: Bryant Electric
• Category: Electrical Receptacles
• UNSPSC: 39121406
• Country of Origin: US
• Brand ID: BRYANT
• Description - Long: Locking Devices, Isolated Ground, Industrial, Flush Receptacle, 30A 125/250V AC, 3-Pole 4-Wire Grounding, L14-30R, Screw Terminal, Orange.
• Description - Short: Locking Devices, Isolated Ground, Industrial, Flush Receptacle, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R, Screw Terminal, Orange
• FV_Current/Amperage Rating Description: 30 Amp
• FV_Voltage Rating Description: 125/250V AC
• Product Name: 71430IG
• Brand: Bryant
• Part #: 71430IG
