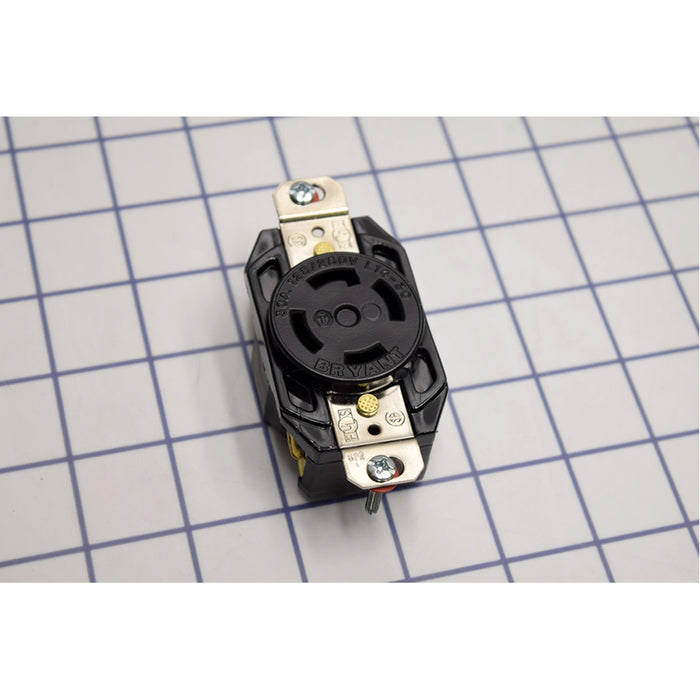

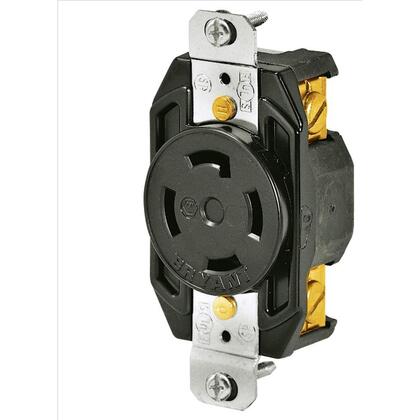

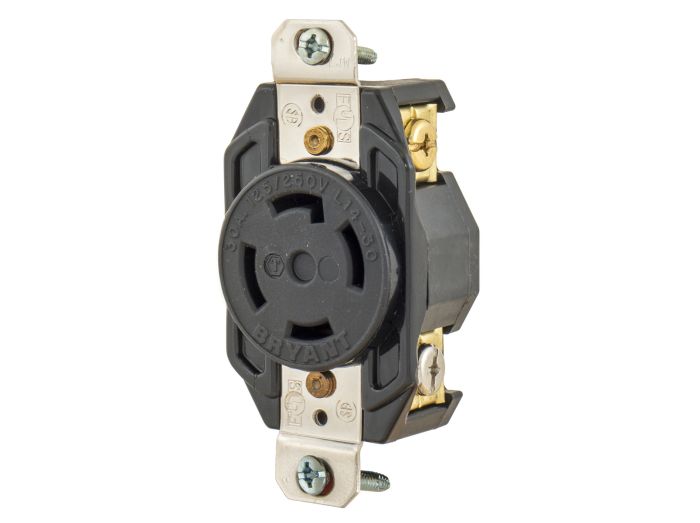

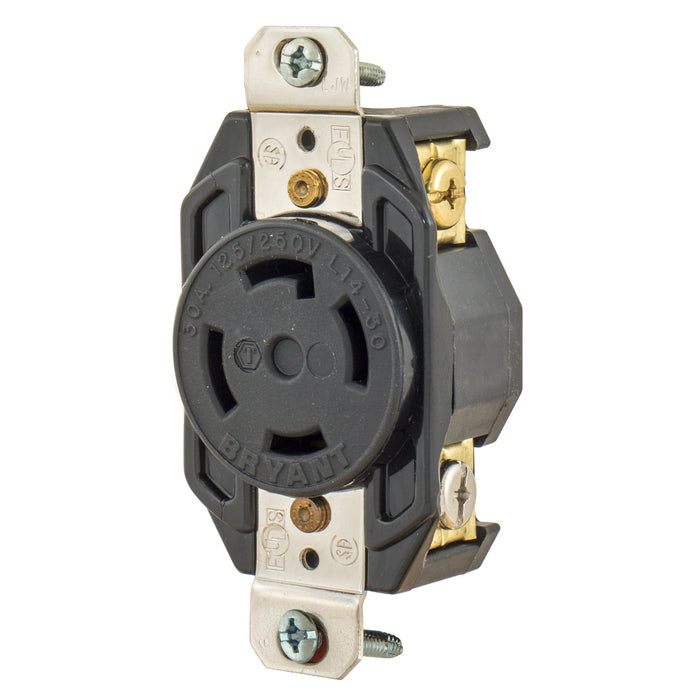

Bryant 71430FR Flush Receptacle 30A 125/250V L14-30R

Product Description

The BRYANT 71430FR is an industrial-grade flush receptacle, designed for heavy-duty applications. Rated at 30A and 125/250V AC, this 3-pole, 4-wire grounding receptacle features screw terminals for secure connectivity. It accepts #14 to #8 AWG solid or stranded conductors and has a NEMA rating of L14-30R.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade flush receptacle with robust construction and secure wiring terminals, suitable for demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71430FR
• Country of Origin: UNITED STATES

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 71430FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786695337
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L14-30R
• Standards - RoHS Compliance Status: CM
• Manufacturer Part Number: 71430FR
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC, 250 VAC
• Body Type: Straight
• Connection Type: Receptacle
• Watertight: No
• Isolated Ground: No
• Mounting: Flush
• Volts AC: 120, 240
• Amps: 30
• Receptacle Type: Receptacle
• Gender: Female
• Flange Style: No Flange
• Resistance Features: Impact-Resistant
• Grade: Industrial
• Grounding Style: Grounding
• Standards: UL Listed; CSA Certified
• Maximum Cord Diameter: 29.20 mm
• UNSPSC Code: 39121400
• Country of Origin: UNITED STATES
• Product Name: Bryant Locking Receptacle 30A 125/250V L14-30R Black (71430FR)
• Brand: Bryant
• SKU: 71430FR
• Mfr. Part Number: 71430FR
