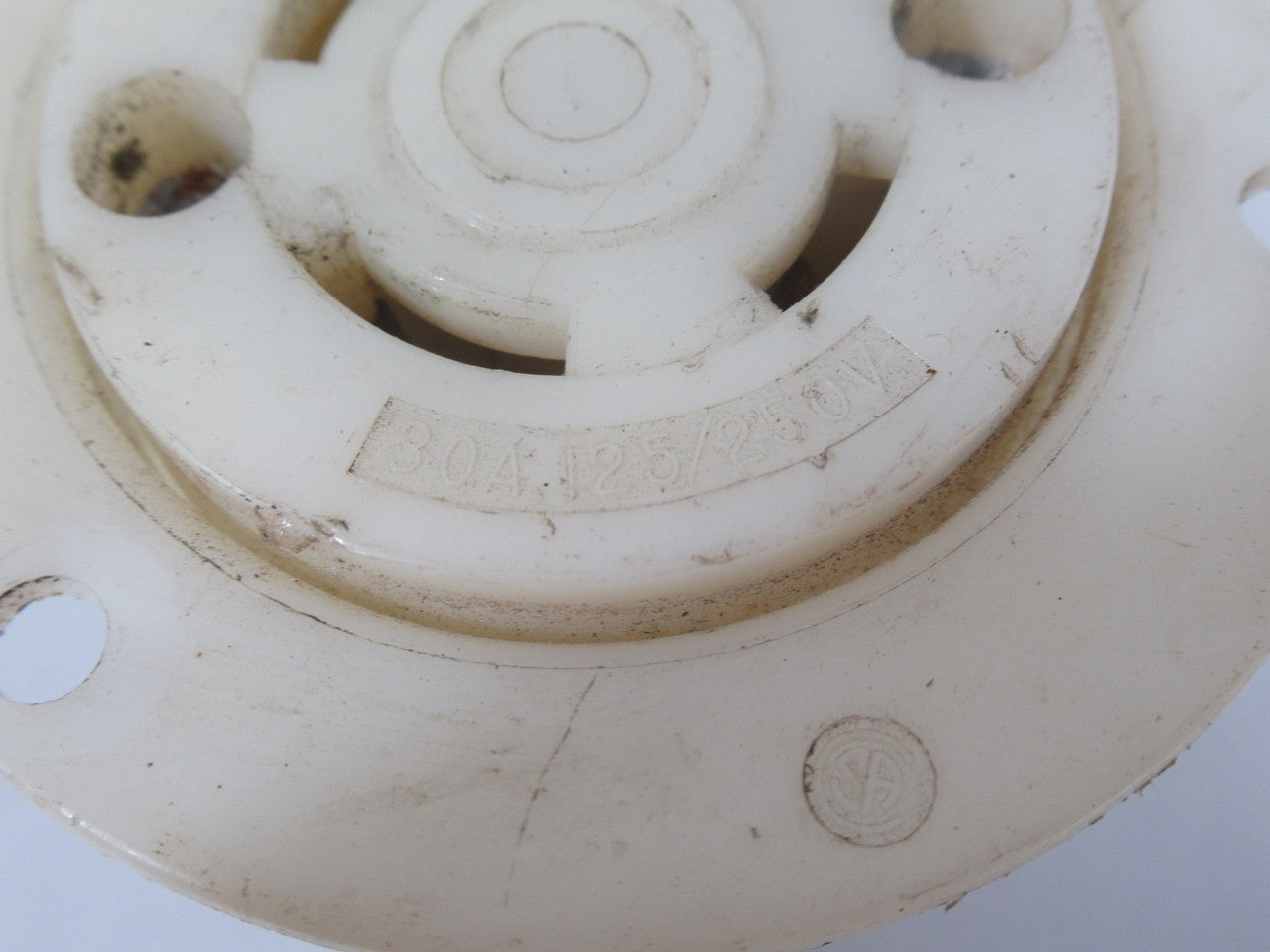

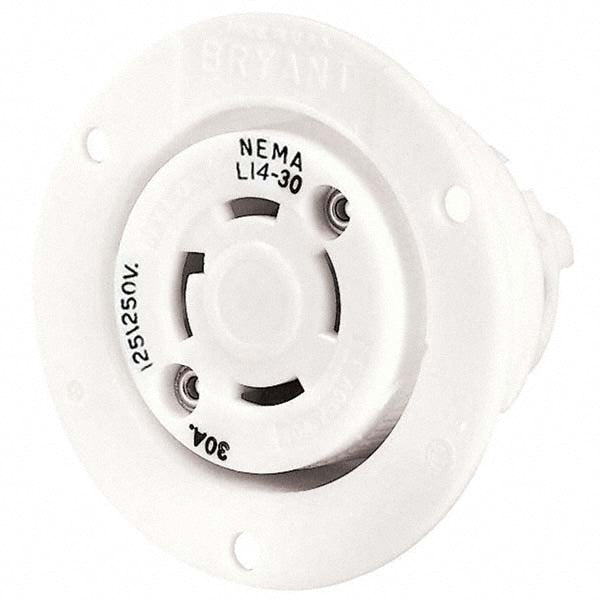

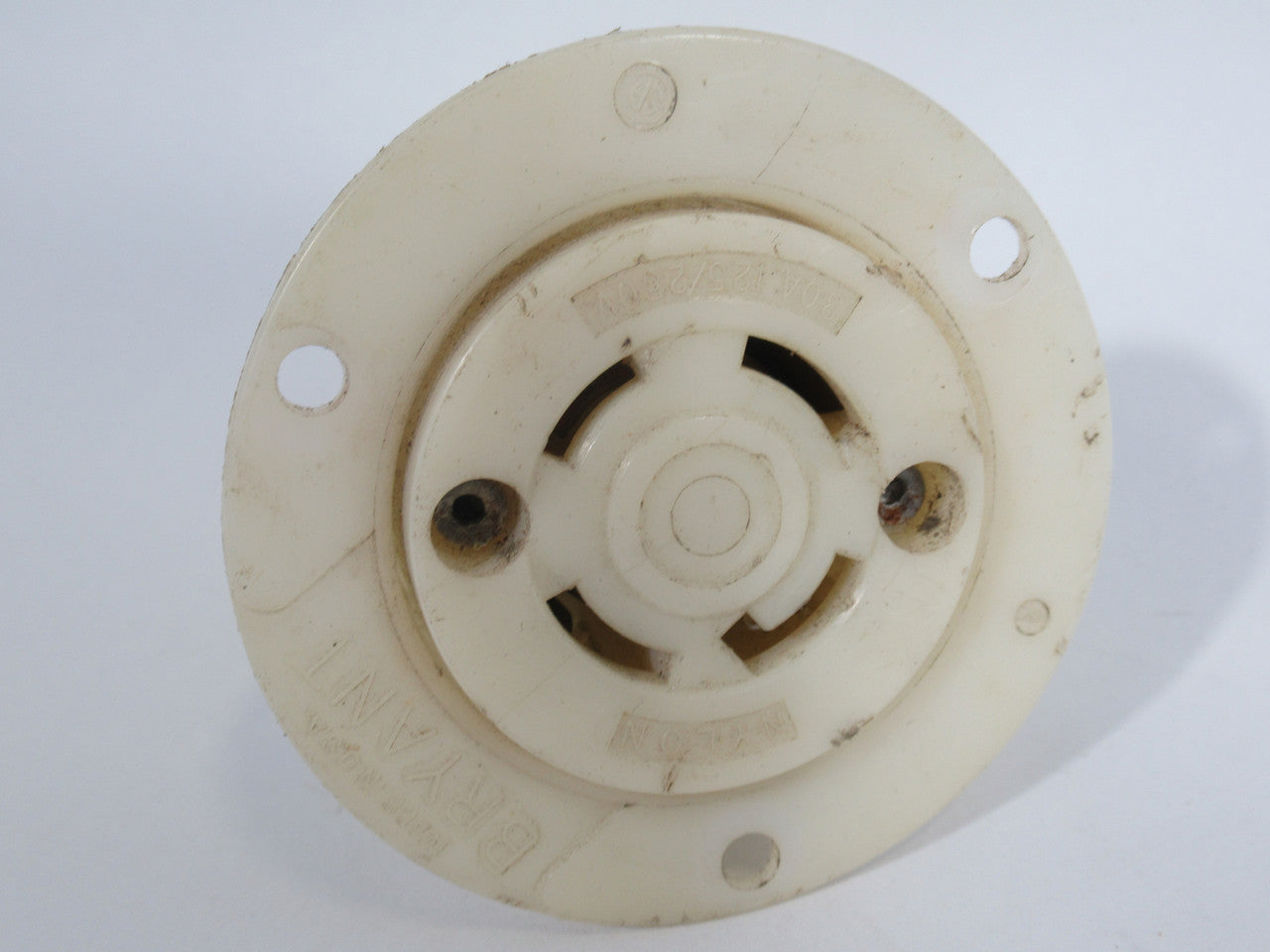

Bryant 71430ER Flanged Receptacle 30A 125/250V L14-30R

Product Description

The BRYANT 71430ER is an industrial flanged receptacle rated at 30A and 125/250V AC. This 3-pole, 4-wire grounding receptacle features screw terminals and impact-resistant thermoplastic construction. It is suitable for heavy-duty industrial applications and designed for indoor dry environments unless protected by additional means.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Industrial grade flanged receptacle with robust construction and easy installation.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71430ER
• Country of Origin: UNITED STATES

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 71430ER
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Flanged Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: FLUSH MOUNT
• UPC: 781786695306
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L14-30R
• Ground: Grounding
• Receptacle Type: Receptacle
• Gender: Female
• Flange Style: Flanged
• Resistance Features: Impact-Resistant
• Grade: Industrial
• Grounding Style: Grounding
• Standards: UL Listed; CSA Certified
• Nema Configuration: L14-30R
• Maximum Cord Diameter: 29.20 mm
