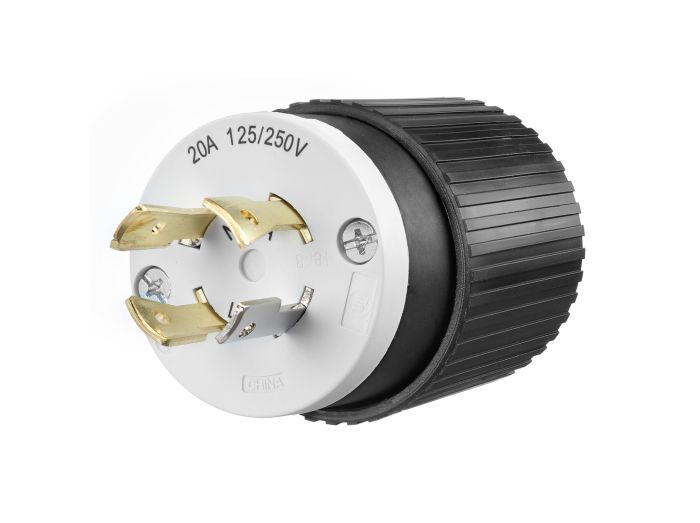

Bryant 71420NP Locking Devices Industrial Male Plug 20A 125/250V L14-20P

Product Description

The BRYANT 71420NP is an industrial male nylon plug designed for locking devices, rated at 20A 125/250V, 3-Pole 4-Wire Grounding, and featuring an L14-20P configuration with screw terminals. It features a wide-rib, non-slip hand grip. This plug is suitable for extra heavy-duty industrial applications.

• Hand grip features wide-rib, non-slip design
• Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
• Captive, combination Slot/Phillips assembly screws

Product Highlights

Ideal as a replacement wiring device to upgrade your cables for generators, tools, and equipment.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71420NP

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 71420NP
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Triple Gripper Nylon Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786695221
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250 VAC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L14-20P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Listed Portables
• Features: Locking Plug
• Model #: 71420NP
• Manufacturer Part Number: 71420NP
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC, 250 VAC
• Body Type: Straight
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
