Bryant 71420NC Locking Connector Nm L14-20R

Product Description

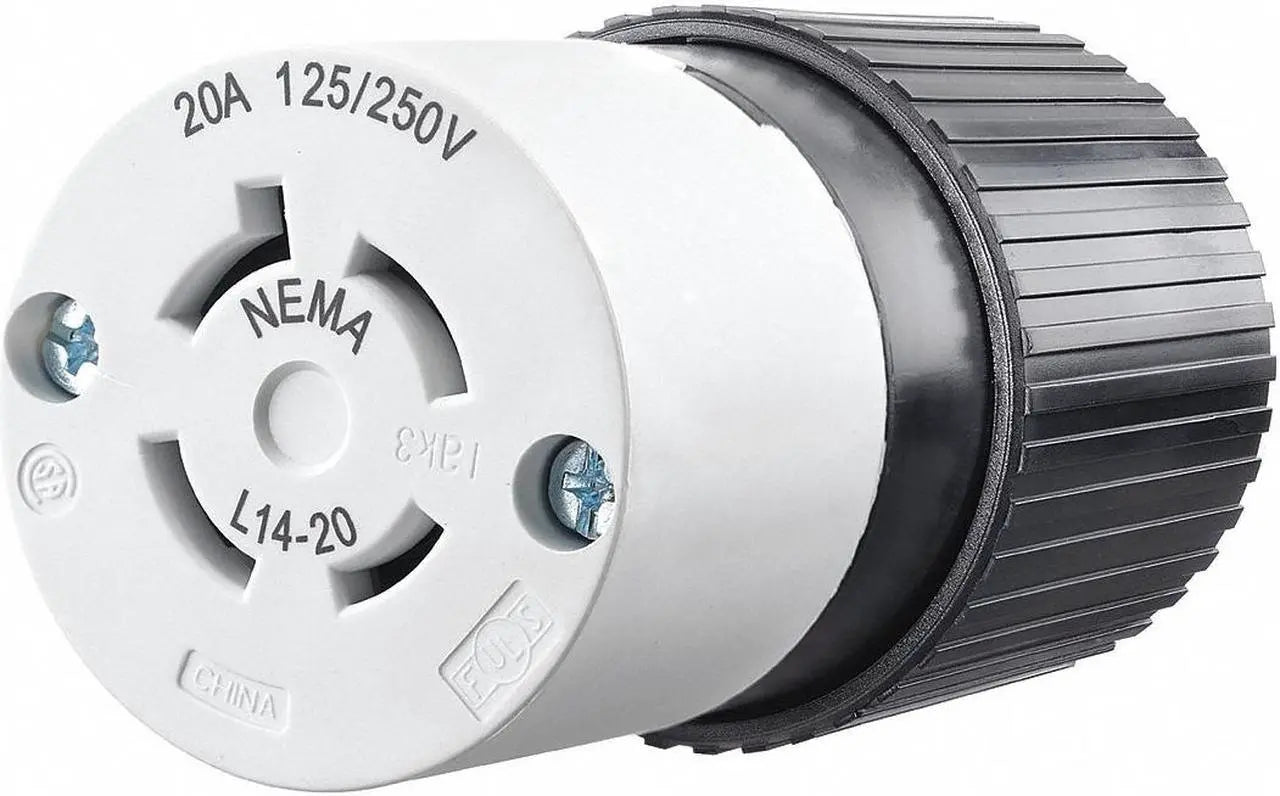

The Bryant 71420NC locking connector is a 20A, 125/250 VAC, 3-pole, 4-wire grounding connector with a NEMA L14-20R configuration. It features alignment keys for easy assembly and amperage, voltage, and NEMA configuration imprinted on the face for easy identification. Constructed with impact and chemical-resistant toughened nylon.

• Alignment keys for easy assembly
• Amperage, voltage and NEMA configuration imprinted on face
• Impact/chemical resistant, toughened nylon construction

Product Highlights

Industrial-grade locking connector with secure cord retention and easy assembly.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71420NC
• Country of Origin: China

Technical Specifications

• Part #: 71420NC
• Category: Connector/Terminal/Pin
• Application: Heavy Duty Industrial
• Catalog Number: 71420NC
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 20A Triple Gripper Nylon Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Temperature Rating: Maximum Continuous: 75
• Type: Connector Body
• UPC: 781786695191
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250 VAC
• Conductor Range: #14 AWG to #12 AWG
• Number of Conductors: 4-Wire Grounding
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Nema Rating: L14-20R
• Standards - RoHS Compliance Status: CM
• Phase: Single
• Polarized: Yes
• Resistance Properties: Chemical Resistant, Impact Resistant
• Shrouded: No
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• Cap Type: No Cap or Cover
• Grade: Industrial
• Grounding: Grounded
• Market: Industrial
• Connector Type: Plug in
• Plug Type: Twist
• Amperage: 20 Amps
• Specification Met: L14-20
