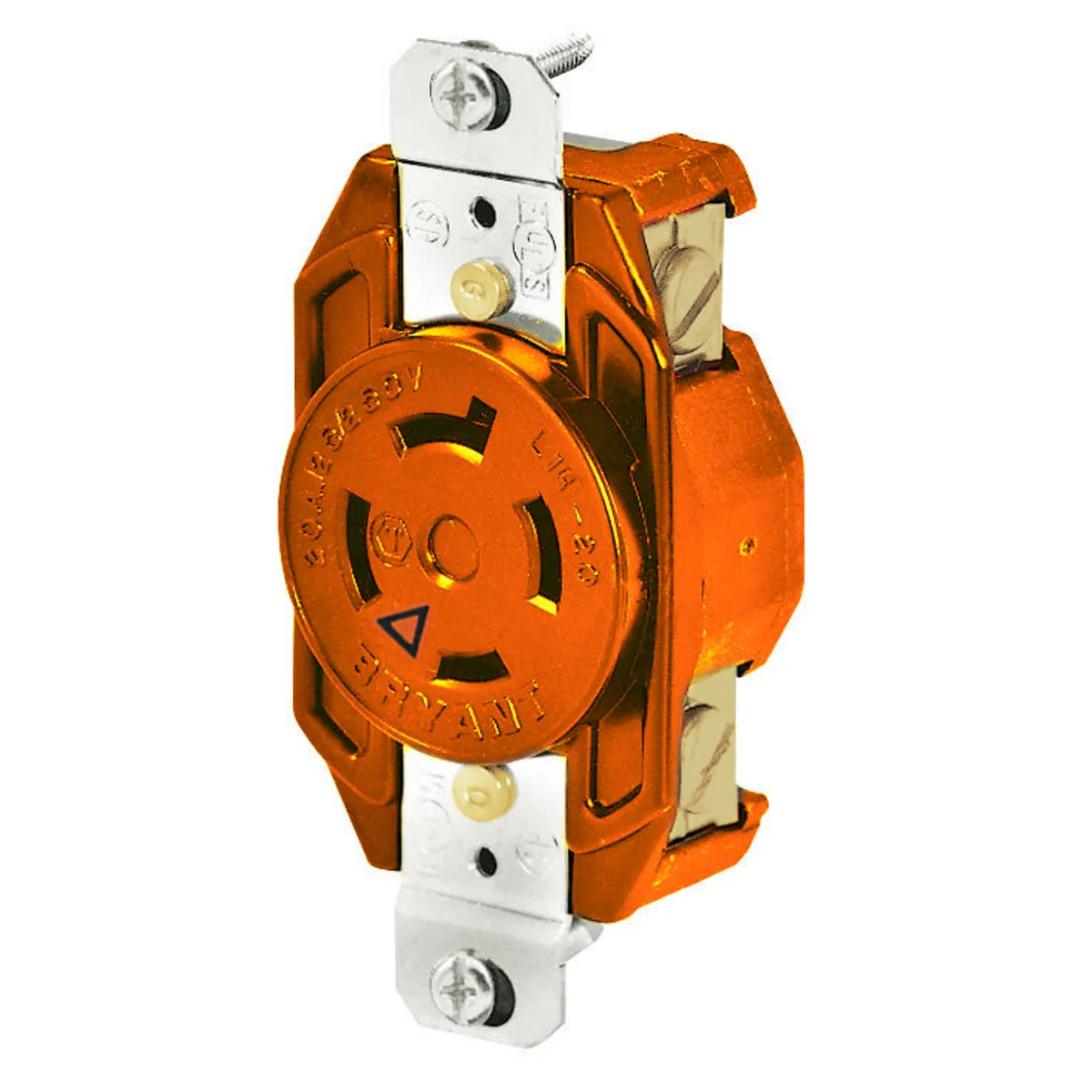

Bryant 71420IG Industrial Flush Receptacle 20A 125/250V

Product Description

The BRYANT 71420IG is an industrial flush receptacle with a screw terminal. This single receptacle is rated for extra heavy-duty industrial applications. It supports 3-pole, 4-wire grounding and limits electrical noise with dual grounding paths. Designed for indoor dry environments unless protected.

• Limits electrical noise on the equipment grounding circuit.
• Features a nylon deep face design.
• Equipped with triple-wipe brass line contacts.

Product Highlights

Industrial grade receptacle with isolated ground, suitable for heavy-duty applications requiring noise reduction.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71420IG

Technical Specifications

• Item: Receptacle
• Amperage Rating: 20A
• Application: Extra Heavy Duty Industrial Specification Grade
• Connectivity: Terminal Screws
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Material: Composite
• Mounting Hardware: Screw Mounting
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Phase: 1
• Series: Locking
• Style: Isolated Ground
• Type: Single Receptacle
• Voltage Rating: 125/250V
• Wire Size: #14 AWG to #8 AWG
• NEMA: L14-20R
• Mounting: Flush
• Face OD: 1.56 in
• Catalog Number: 71420IG
• EU RoHS Indicator: Yes
• Item Type: 20A Single Nylon Receptacle
• OEM Brand Name: Hubbell Bryant
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Voltage Rating Description: 125/250V AC
• Nema Rating: L14-20R
• Standards - RoHS Compliance Status: CM
