Bryant 71420FR Industrial Flush Receptacle 20A 125/250V L14-20R

Product Description

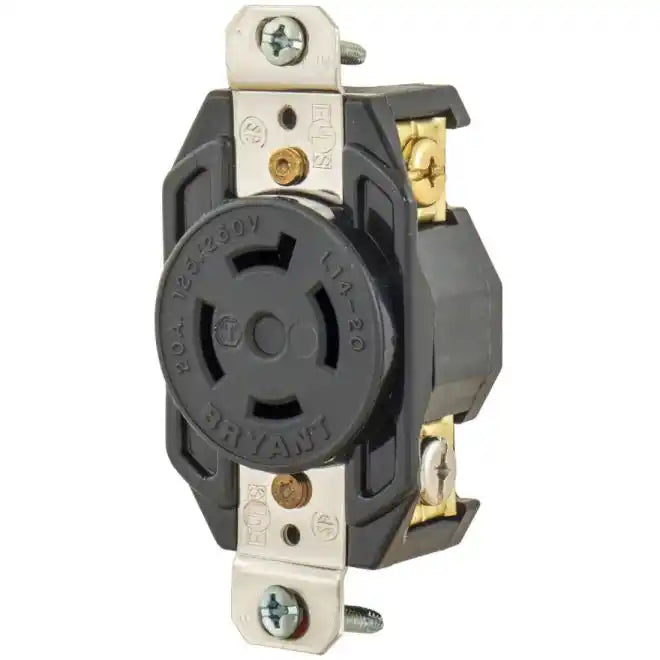

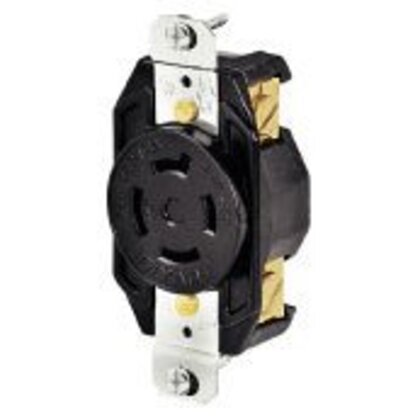

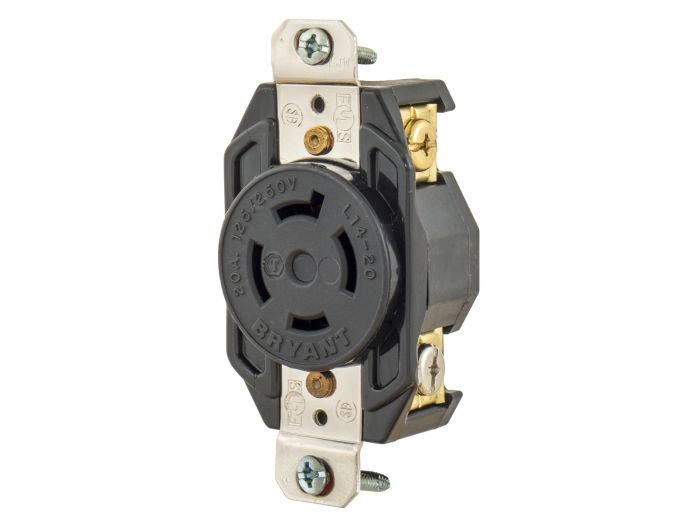

The BRYANT 71420FR industrial flush nylon receptacle is rated for 20A at 125/250V AC. This 3-pole, 4-wire grounding receptacle features combination back and side wiring terminals that accept #14 through #8 AWG solid or stranded conductors. Ideal for heavy-duty industrial applications.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade flush receptacle with screw terminal connectivity. Suitable for indoor dry environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71420FR
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 71420FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786695139
• Amperage Rating: 20 A
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L14-20R
• Standards - RoHS Compliance Status: CM
• Brand: BRYANT
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• Contact Material: Copper Alloy
• Flange Material: Composite
• Flange Type: Non-Flanged
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 2 hp
• Housing Material: Nylon
• Hub Type: Dead End
• IP Rating: Not Rated
• Includes Mounting Hardware: Yes
• Maximum Wire Size: 8 AWG
• Midget Locking: No
• Minimum Wire Size: 14 AWG
• Mount Type: Flush
• NEMA Configuration: L14-20R
• NEMA Enclosure Rating: Not Rated
• NEMA Receptacle Configuration: L14-20R
• Number of Outlets: 1
• Polarized: Yes
• Resistance Properties: Corrosion Resistant
• Shrouded: No
• Standards: UL 498
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121406
• Manufacturer Alternate Number: 71420-FR
• UL Rating Type: NEMA L14-20R
• Rated Current: 20A
• Power Phase: 1-Phase
• Number of Pins/Wires: 4
• Locking Blade: Yes
• Voltage: 125 VAC, 250 VAC
• Body Type: Straight
• Connection Type: Receptacle
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
