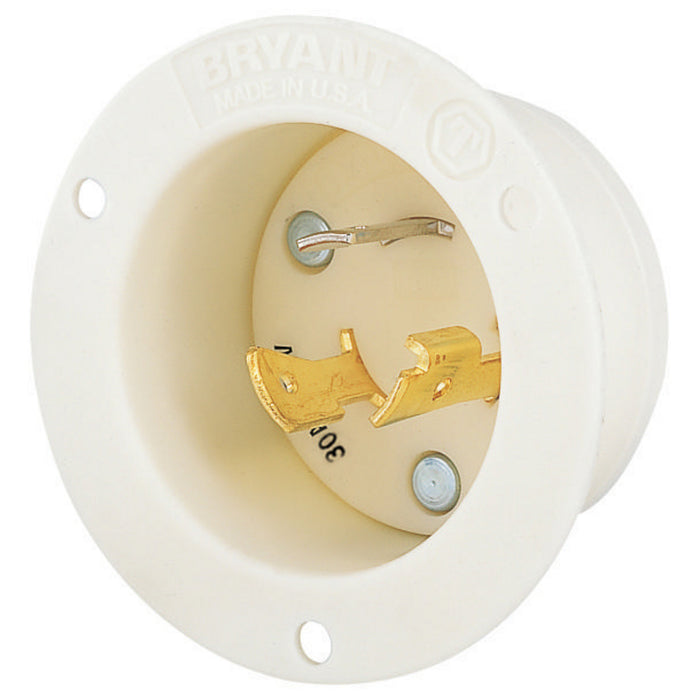

Bryant 71330MB Flanged Inlet-N L13-30P

Product Description

The Bryant 71330MB flanged inlet is designed for industrial applications. Rated at 30A and 600V AC, this 3-pole, 3-wire non-grounding inlet features screw terminals and impact-resistant thermoplastic construction. It is suitable for indoor dry environments unless protected by additional means.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Durable flanged inlet with screw terminals for industrial use.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71330MB

Technical Specifications

• Catalog Number: 71330MB
• Application: Extra Heavy Duty Industrial
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Flanged Inlet
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
• Type: Flanged Inlet
• UPC: 781786694767
• Dimensions: 2.88 in x 2.88 in x 2.02 in
• Height: 2.02 in
• Length: 2.88 in
• Width: 2.88 in
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Dielectric Strength: Withstands 3500V
• Voltage Rating: 3 Phase 600 VAC
• Voltage Rating Description: 3 Phase 600V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L13-30P
• Standards - RoHS Compliance Status: CM
• Weight: 0.15 lb
