Bryant 71330FR Flush Receptacle 30A 600V L13-30R

Product Description

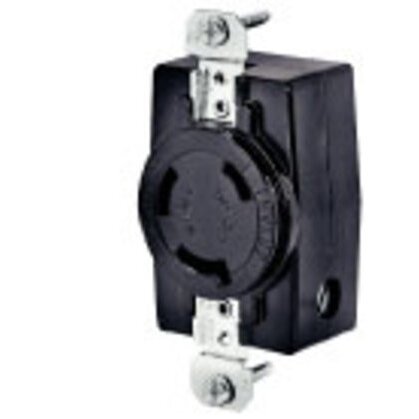

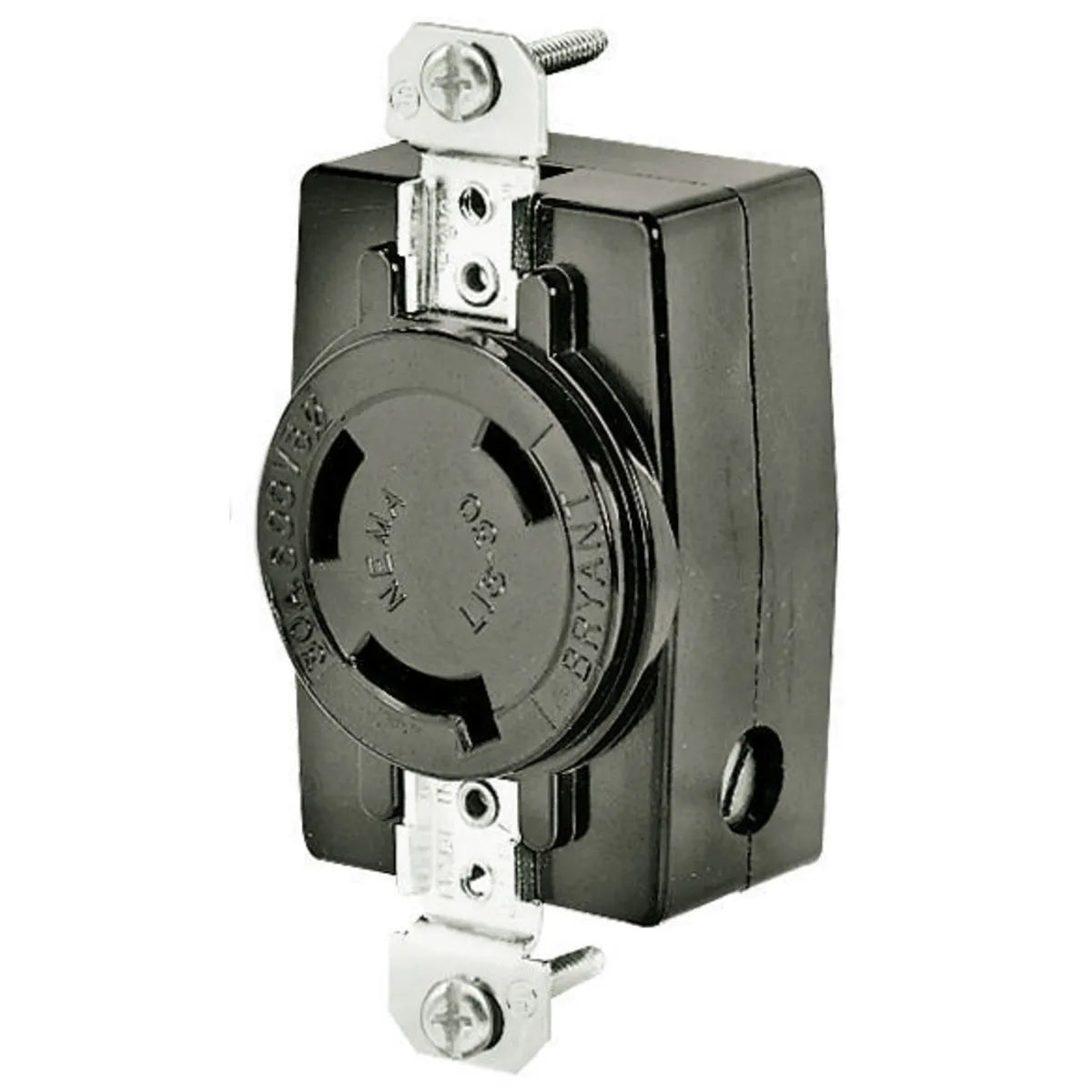

The BRYANT 71330FR is a flush receptacle designed for industrial use. Rated at 30A and 600V, this 3-pole, 3-wire non-grounding receptacle features a L13-30R NEMA configuration and screw terminals. It is suitable for 3-phase delta power systems and ideal for heavy-duty applications.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade flush receptacle with robust construction and secure wiring terminals.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71330FR

Technical Specifications

• Manufacturer Part Number: 71330FR
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 30 A
• Number of Poles: 3
• Number of Wires: 3
• Voltage: 600 VAC
• Phase: 3
• Body Type: Straight
• Connection Type: Receptacle
• NEMA Configuration: L13-30R
• Watertight: No
• Isolated Ground: No
• Color: Black
• Approvals: CSA, UL
• Application: Extra Heavy Duty Industrial Specification Grade
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786694736
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Voltage Rating Description: 3 Phase 600V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L13-30R
• Standards - RoHS Compliance Status: CM
• Carton Quantity: 10
• Voltage Rating: 600 V
