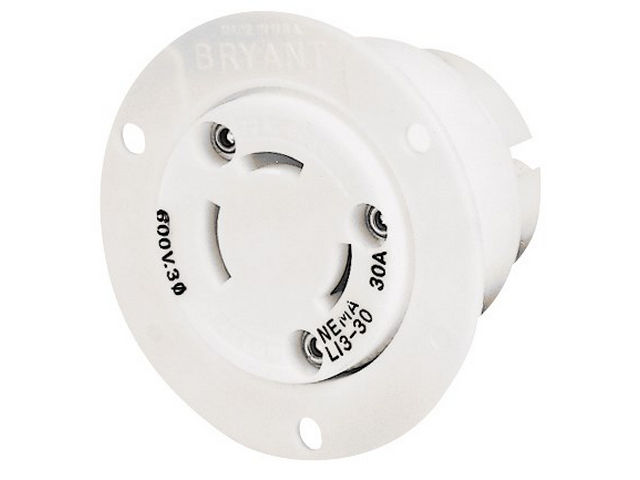

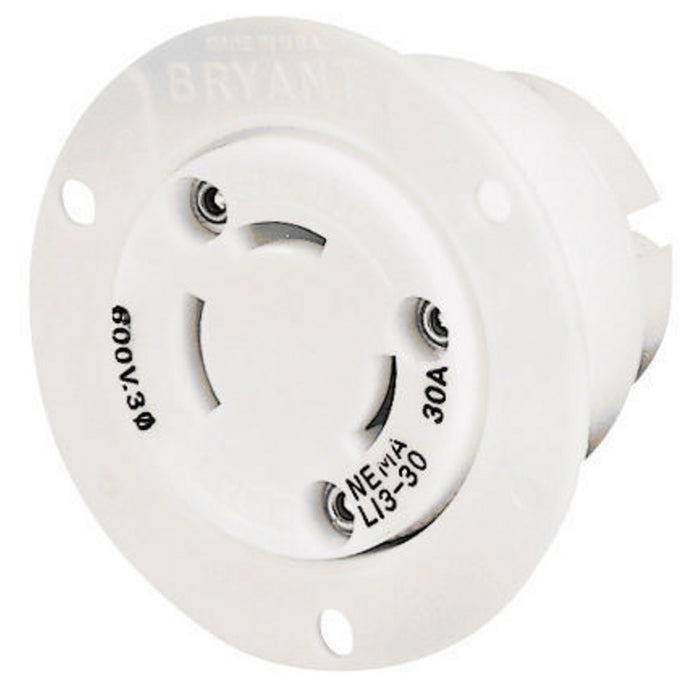

Bryant 71330ER Flanged Receptacle 30A 3-Phase Delta 600V AC L13-30R

Product Description

The BRYANT 71330ER is an industrial flanged receptacle, designed for heavy-duty applications. Rated at 30A, 3-Phase Delta, and 600V AC, this 3-pole, 3-wire non-grounding receptacle features screw terminals for connectivity. Constructed from impact-resistant thermoplastic, it is suitable for indoor dry environments unless protected by additional means.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Industrial grade flanged receptacle with robust construction and easy installation. Ideal for industrial applications requiring a reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71330ER

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 71330ER
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Flanged Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: Flanged Receptacle
• UPC: 781786694705
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 3 Phase 600 VAC
• Voltage Rating Description: 3 Phase 600V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L13-30R
• Standards - RoHS Compliance Status: CM
• Product Name: Bryant Locking Flanged Receptacle 30A 3PH 600V L13-30R Black (71330ER)
• Brand: Bryant
• SKU: 71330ER
• Mfr. Part Number: 71330ER
• Housing Color: Black
• UPC Code: #781786694705
