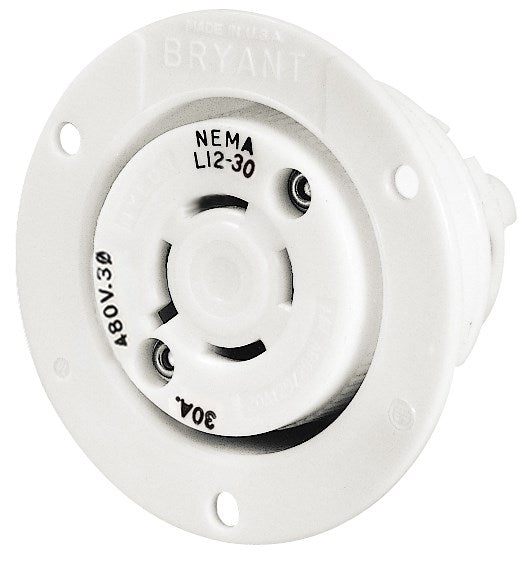

Bryant 71230ER Flanged Receptacle 30A 3-Phase Delta 480V AC L12-30R

Product Description

The BRYANT 71230ER is an industrial flanged receptacle, designed for heavy-duty applications. This 30A, 3-Phase Delta 480V AC, 3-Pole 3-Wire non-grounding receptacle features L12-30R NEMA rating and screw terminals. Constructed with impact-resistant thermoplastic for durability and backwired terminations for easy installation.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Durable flanged receptacle for industrial applications with easy installation and secure connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71230ER
• Country of Origin: US

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 71230ER
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Flanged Receptacle
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: Flanged Receptacle
• UPC: 781786694309
• Dimensions: 2.88 in x 2.88 in x 2.02 in
• Height: 2.02 in
• Length: 2.88 in
• Width: 2.88 in
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 3 Phase 480 VAC
• Voltage Rating Description: 3 Phase 480V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L12-30R
• Standards - RoHS Compliance Status: CM
• Rating - Amps: 30A
• Rating - Volts: 480V 3 Phase
• Ground: Non-Grounding
• Wattage: 14,400 W
• Brand ID: BRYANT
• Description - Long: Locking Devices, Industrial, Flanged Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 3-Wire Non-Grounding, L12-30R, Screw Terminal, White
• Description - Short: Locking Devices, Industrial, Flanged Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 3-Wire Non-Grounding, L12-30R, Screw Terminal, White
• FV_Current/Amperage Rating Description: 30 Amp
• FV_Voltage Rating Description: 3 Phase 480V AC
• Product Name: 71230ER
• Part No.: 71230ER
• Category: Plug/Receptacle
