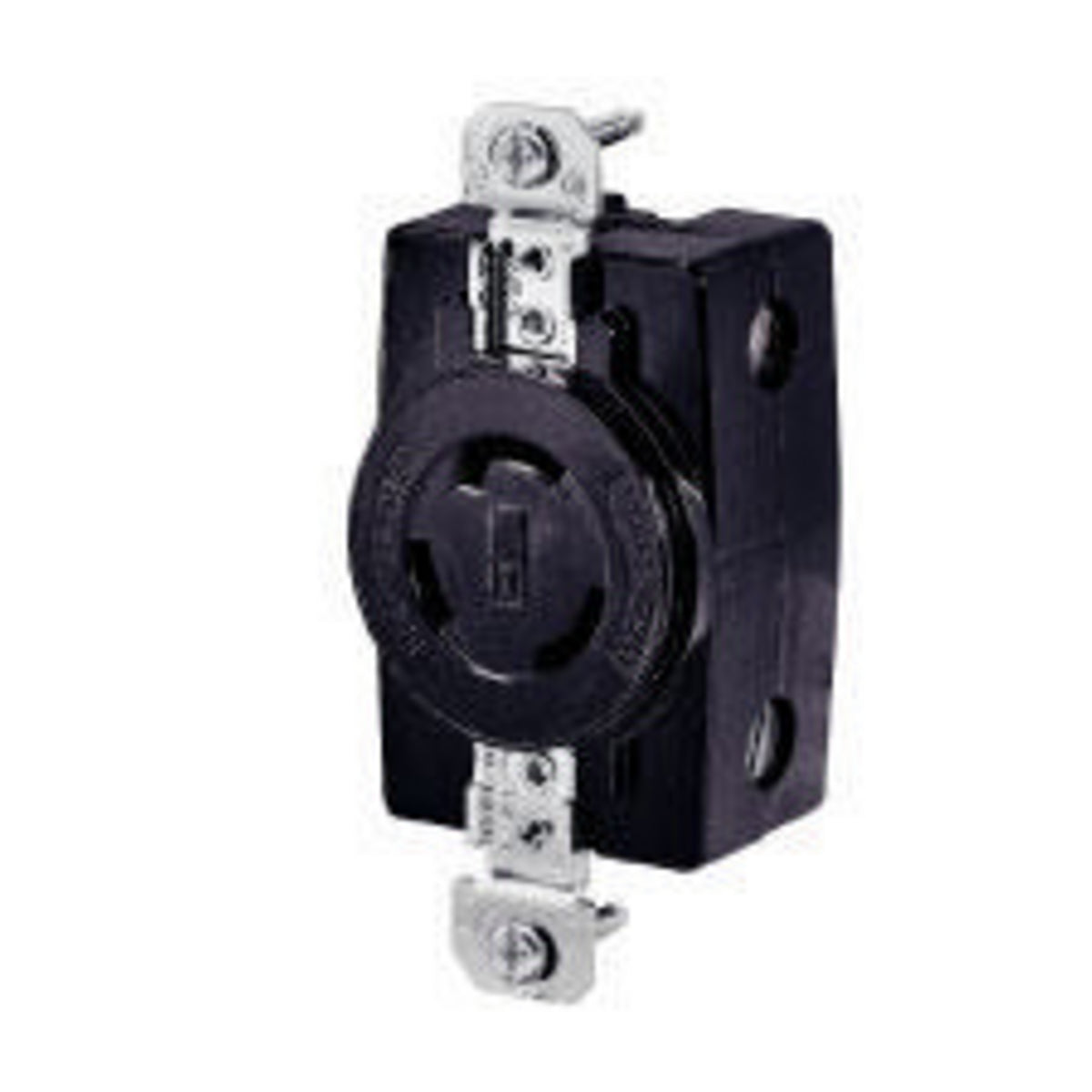

Bryant 71130fr locking devices industrial flush receptacle 30A 3-Phase Delta 250V AC L11-30R

Product Description

The BRYANT 71130FR is an industrial flush receptacle designed for locking devices. Rated at 30A, it supports 3-Phase Delta 250V AC, featuring a 3-pole, 3-wire non-grounding configuration with L11-30R and screw terminals. Ideal for heavy-duty industrial applications requiring secure and reliable power connections.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade flush receptacle, 30A, 3-Phase, 250V AC, 3-Pole, 3-Wire Non-Grounding, L11-30R, Screw Terminal.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71130FR
• Country of Origin: US

Technical Specifications

• Application: Electrical Wiring
• Catalog Number: 71130FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786693739
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 250 V AC
• Voltage Rating Description: 3 Phase 250V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L11-30R
• Standards - RoHS Compliance Status: CM
• Mounting Style: Flush
• Model: 71130FR
• Number of Outlets: 1
• Resistance Properties: Impact Resistant
• Manufacturer: Bryant Electric
• Category: Electrical Receptacles
• UNSPSC: 39121406
• Country of Origin: US
• Wattage: 7.5 kW
• Brand ID: BRYANT
• Description - Long: Locking Devices, Industrial, Flush Receptacle, 30A 3-Phase Delta 250V AC, 3-Pole 3-Wire Non-Grounding, L11-30R, Screw Terminal, Black
• Description - Short: Locking Devices, Industrial, Flush Receptacle, 30A 3-Phase Delta 250V AC, 3-Pole 3-Wire Non-Grounding, L11-30R, Screw Terminal, Black
• FV_Current/Amperage Rating Description: 30 Amp
• FV_Voltage Rating Description: 3 Phase 250V AC
