Bryant 71120NC Lkg Conn, 20a 3ph 250v, L11-20r

Product Description

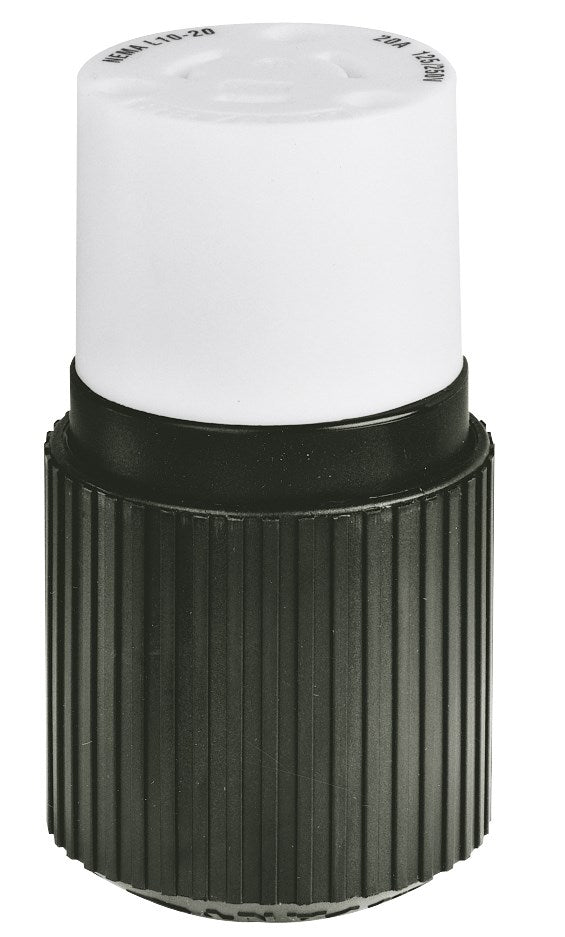

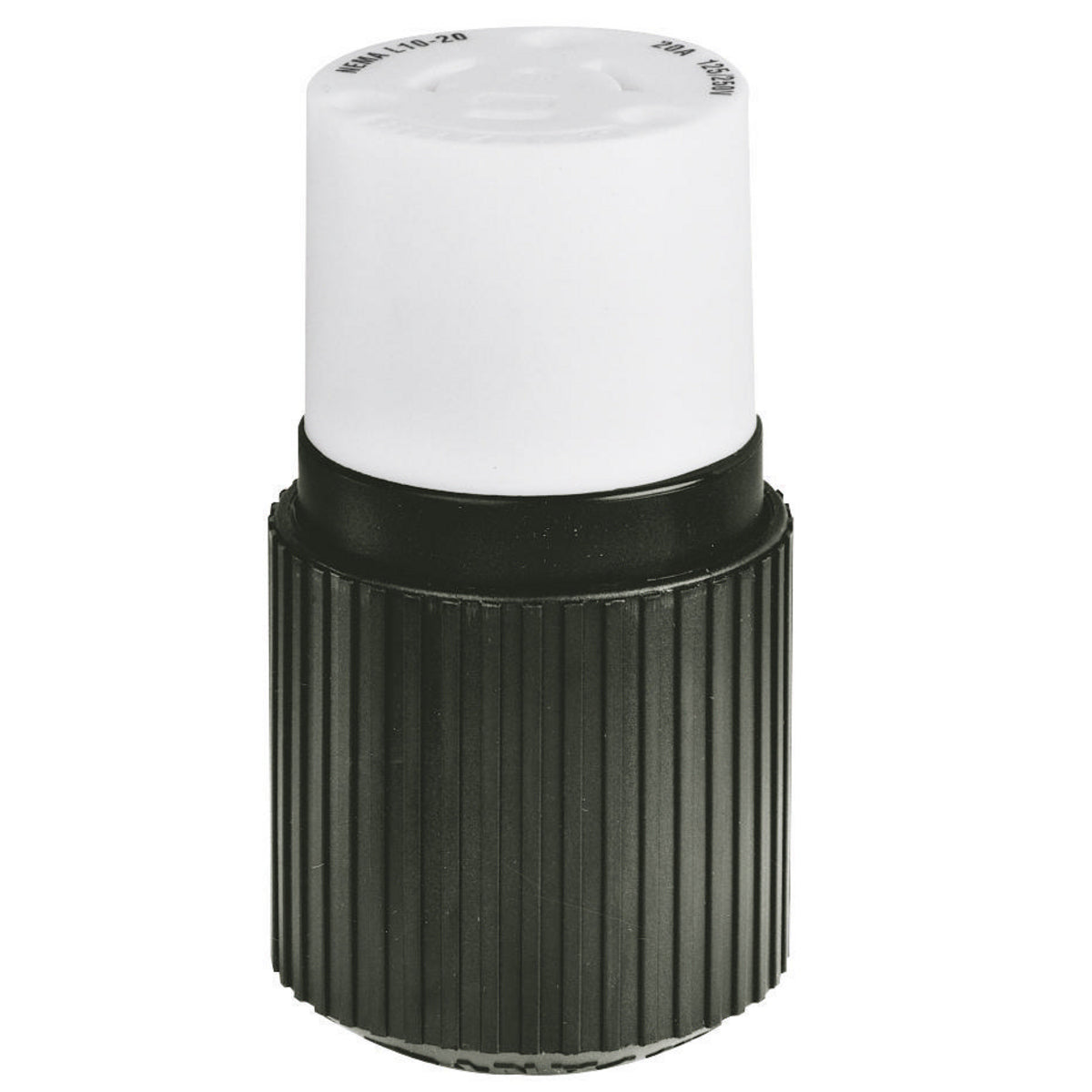

The BRYANT 71120NC is an industrial female connector body. Rated at 20A 3-Phase Delta 250V AC, it features a 3-pole 3-wire non-grounding configuration and L11-20R NEMA rating. Constructed from impact and chemical-resistant nylon, it ensures durability and reliability in demanding environments. The screw terminal facilitates secure connections.

• Face and body feature alignment keys for easy assembly
• Amperage, voltage and NEMA configuration imprinted on face for easy identification
• Impact/chemical resistant, toughened nylon construction

Product Highlights

Industrial female connector body, 20A 3-Phase Delta 250V AC, 3-Pole 3-Wire Non-Grounding, L11-20R, Screw Terminal.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71120NC
• Country of Origin: United States

Technical Specifications

• Brand: Bryant
• MPN: 71120NC
• Type: Connector Body
• Input Voltage: 250 v
• Output Voltage: 250 V
• UPC: 781786693395
• UNSPSC: 39121421
• Catalog Number: 71120NC
• Amperage Rating: 20 A
• Voltage Rating: 3 Phase 250 VAC
• Color: Black/White
• Material: Composite
• Number Of Poles: 3-Pole
• Conductor Range: #14 AWG to #12 AWG
• Cord Diameter: 0.300-0.655 in
• Current Rating: 20 A
• EU RoHS Indicator: Yes
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• FV_Current/Amperage Rating Description: 20 Amp
• FV_Voltage Rating Description: 3 Phase 250 VAC
• Insulation: Insulated Body
• Item Type: 20A Triple Gripper Nylon Connector
• Material - Mounting Hardware: Cord Mounted
• NEMA Rating: L11-20R
• Number Of Conductors: 3-Wire Non-Grounding
• OEM Brand Name: Hubbell Bryant
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact.
• Voltage Rating Description: 3 Phase 250 VAC
• Application: Heavy Duty Industrial
• Style: Internal Cord Clamp
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L11-20R
• Standards - RoHS Compliance Status: CM
