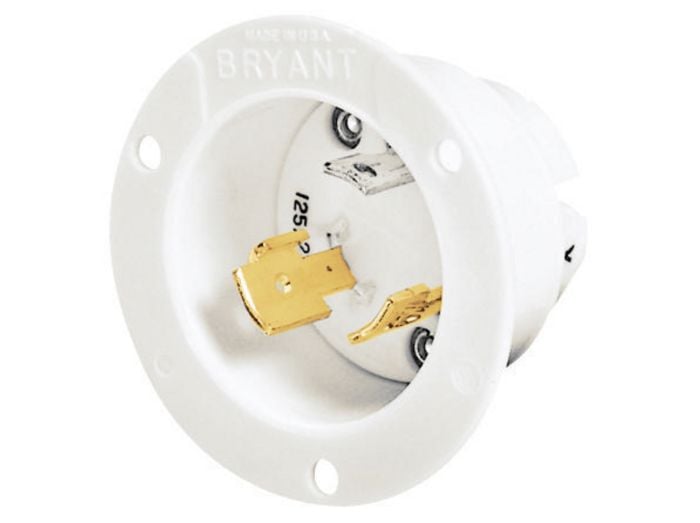

Bryant 71030MB Flanged Inlet 30A 125/250V L10-30P

Product Description

The BRYANT 71030MB is a flanged inlet designed for industrial use. This 30A, 125/250V, 3-pole, 3-wire non-grounding device features screw terminals and impact-resistant thermoplastic construction. It is suitable for extra heavy-duty industrial applications and indoor dry environments.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Industrial flanged inlet with robust construction and easy installation. Ideal for connecting equipment in demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71030MB
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 71030MB
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Flanged Inlet
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
• Type: Flanged Inlet
• UPC: 781786692664
• Dimensions: 2.88 in x 2.88 in x 2.02 in
• Display Size: Standard Sized Product
• Height: 2.02 in
• Length: 2.88 in
• Width: 2.88 in
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Dielectric Strength: Withstands 3500V
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L10-30P
• Brand: Bryant
• MPN: 71030MB
• eBay Product ID (ePID): 2337368818
• Output Voltage: 250 V
• Manufacturer Part Number: 71030MB
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC, 250 VAC
• Body Type: Straight
• Connection Type: Flanged Inlet
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Net Weight: 0 lbs
• Gross Weight: 0.15 lbs
• Country of Origin: United States
• Special Features: Standard Product
• Description - Invoice: LKG FLG-INLT, 30A 125/250V, L10-30P,WH
• Harmonization Code: 8536694020
• MSDS Flag: No
• BOX SIZE: 5.300x14.600x6.100 (in)
• Carton - Number of Sub Packs: 10
• Carton - SCC-14 Next Lower Level Sub Pack: 781786692664
• Each - Pack Description: Each
• Class Code: A08
• Freight Class Code: 06168002
• Image Actual Or Representative: A
• Sub Class Code: A08A172
• Base Unit of Measure: EA
• Carton - Gross Weight per Pack: 2.3 lb.
• Carton - Pack Description: Carton
• Carton - Total Units: 10 EA
• Lowest Level UOM: Each
• Certifications: EU RoHS Indicator
