Bryant 71030FR Flush Receptacle 30A 125/250V L10-30R

Product Description

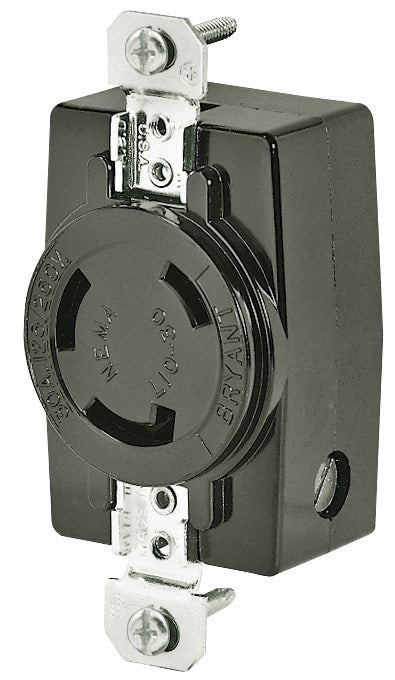

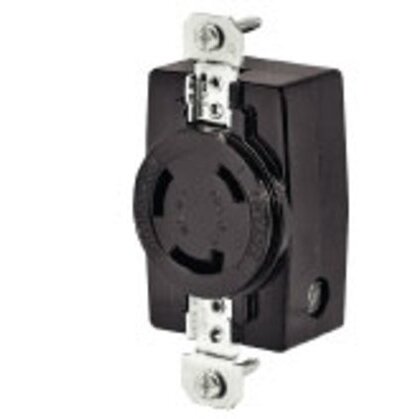

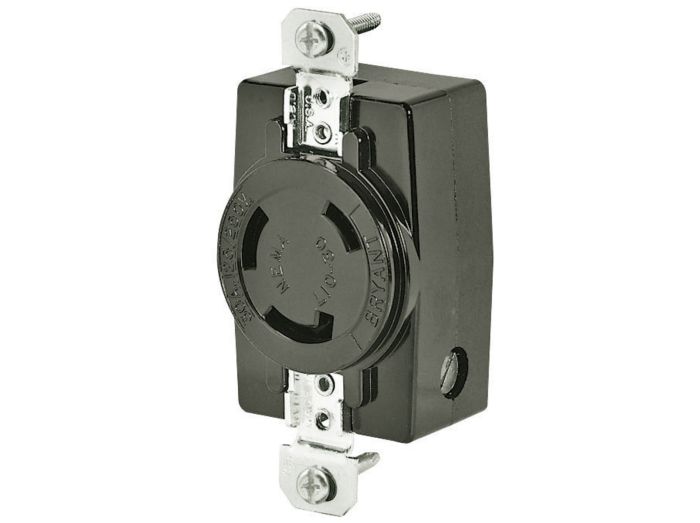

The BRYANT 71030FR is an industrial flush receptacle, designed for locking devices. Rated at 30A and 125/250V AC, it features a 3-pole, 3-wire non-grounding configuration and L10-30R NEMA rating. The receptacle includes screw terminals for secure connections. Ideal for heavy-duty industrial applications.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade flush receptacle with robust construction and secure wiring terminals for demanding applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71030FR
• Country of Origin: US

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 71030FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786692633
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L10-30R
• Standards - RoHS Compliance Status: CM
• Manufacturer Part Number: 71030FR
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC, 250 VAC
• Body Type: Straight
• Connection Type: Receptacle
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Wattage: 7.5 kW
• Brand ID: BRYANT
• Description - Long: Locking Devices, Industrial, Flush Receptacle, 30A 125/250V AC, 3-Pole 3-Wire Non-Grounding, L10-30R, Screw Terminal, Black.
• Description - Short: Locking Devices, Industrial, Flush Receptacle, 30A 125/250V, 3-Pole 3-Wire Non-Grounding, L10-30R, Screw Terminal, Black
• FV_Current/Amperage Rating Description: 30 Amp
• FV_Voltage Rating Description: 125/250V AC
• Product Name: 71030FR
• Part #: 71030FR
• Category: Plug/Receptacle
