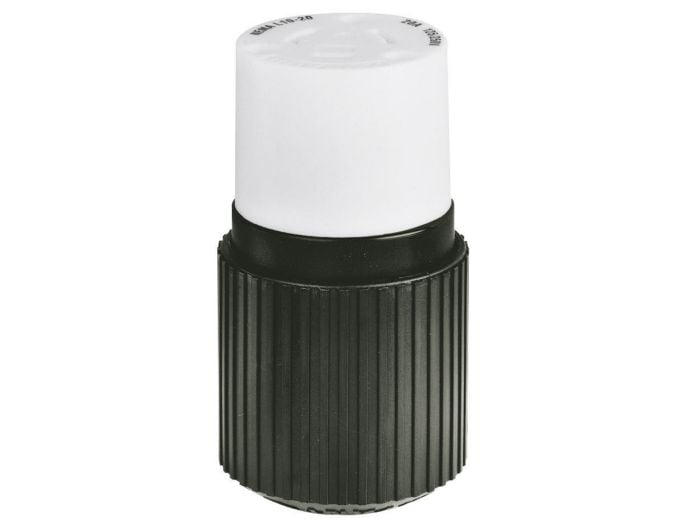

Bryant 71020nc Locking Connector 20A 125/250V L10-20R

Product Description

The BRYANT 71020NC is a locking connector designed for industrial use. This female nylon connector body supports 20A at 125/250V AC. It features a screw terminal and a 3-pole, 3-wire non-grounding configuration, adhering to NEMA L10-20R standards.

• 20A current rating
• NEMA L10-20R configuration
• Screw terminal connection

Product Highlights

Industrial-grade locking connector with a durable nylon body, suitable for power connections requiring secure and reliable performance.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71020NC

Technical Specifications

• Brand: Bryant Electric
• Connector Type: Plug in
• Number Of Poles: 3
• Number of Wires: 3
• Specification Met: NEMA
• Amperage: 20 Amps
• Manufacturer Part Number: 71020NC
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 20 A
• Voltage: 125 VAC, 250 VAC
• Body Type: Straight
• Connection Type: Connector
• NEMA Configuration: L10-20R
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Material: Nylon
