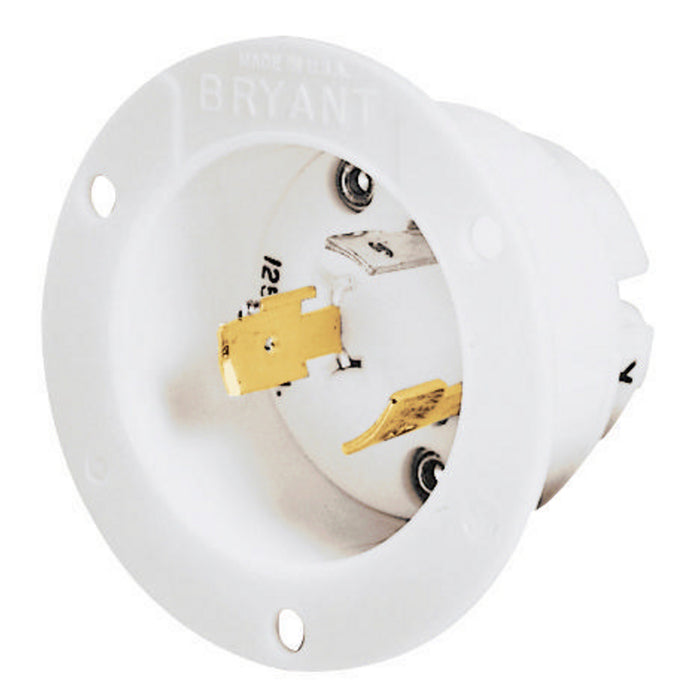

Bryant 71020MB Flanged Inlet 20A 125/250V L10-20P

Product Description

The BRYANT 71020MB is an industrial flanged inlet, designed for heavy-duty applications. Rated at 20A and 125/250V, this 3-pole, 3-wire non-grounding inlet features screw terminals and impact-resistant thermoplastic construction. It is suitable for indoor dry environments unless protected by additional means.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Industrial flanged inlet with robust construction and easy installation, ideal for industrial applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71020MB

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 71020MB
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 20A Flanged Inlet
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
• Type: Flanged Inlet
• UPC: 781786692466
• Dimensions: 2.88 in x 2.88 in x 2.02 in
• Height: 2.02 in
• Length: 2.88 in
• Width: 2.88 in
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Dielectric Strength: Withstands 3000V Minimum
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L10-20P
• Brand: Bryant
• SKU: 71020MB
• Mfr. Part Number: 71020MB
• Housing Color: White
• UPC Code: #781786692466
• Weight: 0.15 lb
