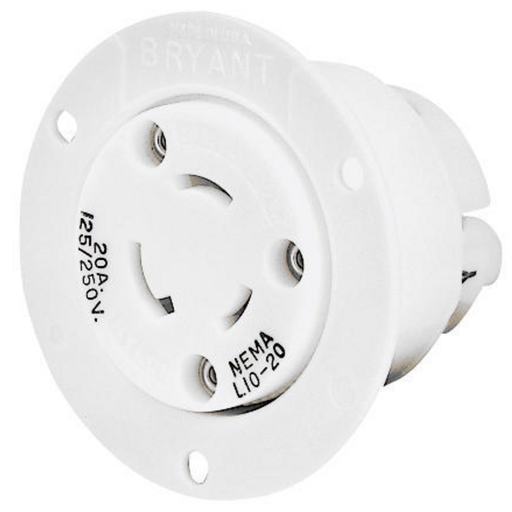

Bryant 71020ER Flanged Receptacle 20A 125/250V L10-20R

Product Description

The BRYANT 71020ER is an industrial-grade flanged receptacle designed for locking devices. Rated for 20A at 125/250V AC, this 3-pole, 3-wire non-grounding receptacle features screw terminals and impact-resistant thermoplastic construction. It is suitable for heavy-duty industrial applications and indoor dry environments.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Industrial flanged receptacle, 20A, 125/250V AC, 3-pole, 3-wire non-grounding, with screw terminals.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71020ER
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 71020ER
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Flanged Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: Flanged Receptacle
• UPC: 781786692404
• Amperage Rating: 20 A
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L10-20R
• Standards - RoHS Compliance Status: CM
• Special Features: Standard Product
• Class Code: A08
• Description - Invoice: LKG FLG-RCPT, 20A 125/250V, L10-20R, WH
• Harmonization Code: 8536694020
• MSDS Flag: No
• Certifications: EU RoHS Indicator
• Mfrcode: BRYANT
• MFR UNSPSC: 39121406
• MFR FULLNAME: BRYANT W-DEVICE/ECONOMY CABLE GRIP
• PRODUCT NAME: LOCKING FLANGED RECEPTACLE OUTLET
• APPROVAL: UL 498, CSA, CE, NOM
• VOLTAGE RATING: 125/250 V
• CONFIGURATION: L10-20R
