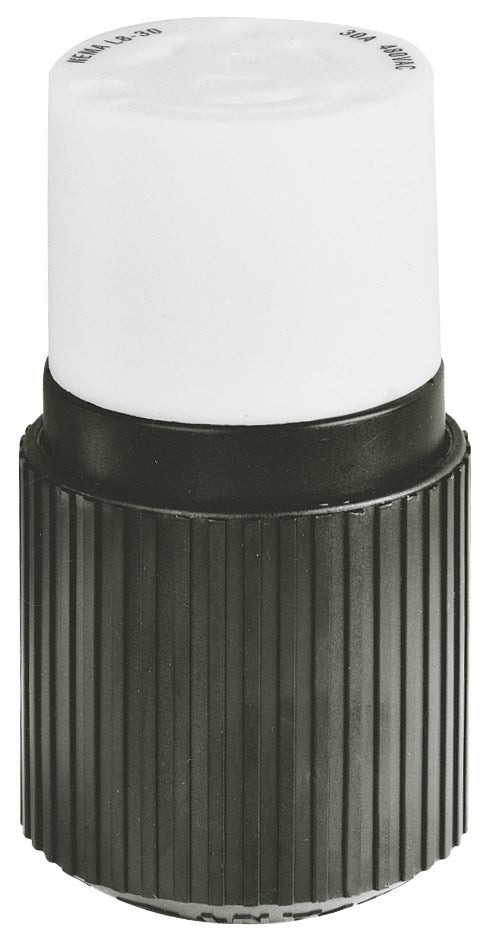

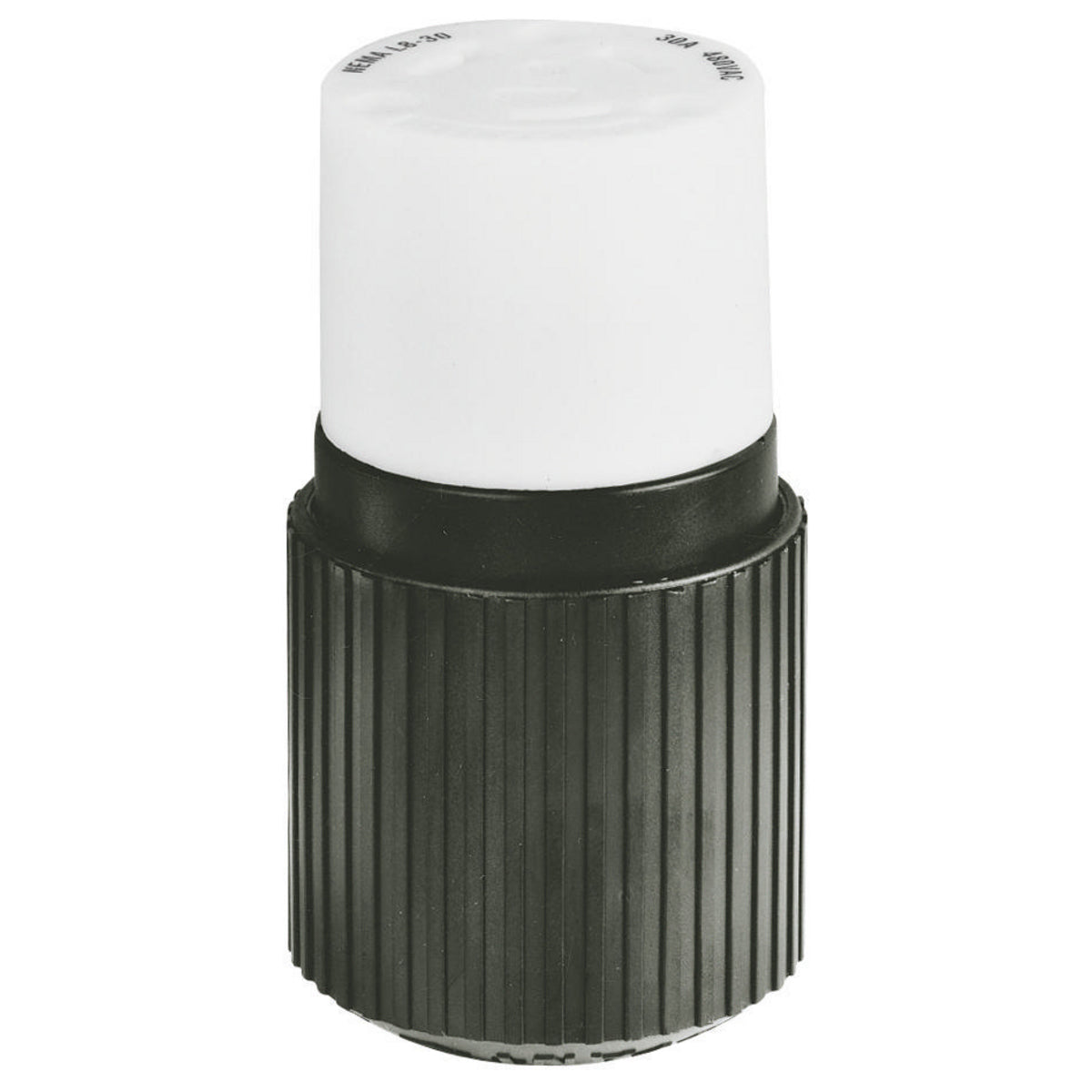

Bryant 70830NC Female Connector Body 30A 480V AC L8-30R

Product Description

The BRYANT 70830NC is an industrial female connector body designed for heavy-duty applications. Rated at 30A and 480V AC, this 2-pole, 3-wire grounding connector features screw terminals and a NEMA L8-30R configuration. Its durable, chemical-resistant nylon construction ensures secure cord retention.

• Features alignment keys for easy assembly
• Amperage, voltage and NEMA configuration imprinted on face for easy identification
• Impact and chemical resistant, toughened nylon construction

Product Highlights

This Bryant connector is ideal for industrial applications requiring a robust and reliable locking connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70830NC
• Country of Origin: US

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: 70830NC
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Triple Gripper Nylon Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Temperature Rating: Maximum Continuous: 75 {Bryant 70830NC Female Connector Body 30A 480V AC L8-30R} - The BRYANT 70830NC is an industrial female connector body designed for heavy-duty applications. Rated at 30A and 480V AC, this 2-pole, 3-wire grounding connector features screw terminals and a NEMA L8-30R configuration. Its durable, chemical-resistant nylon construction ensures secure cord retention.
• bullet_points: ['Features alignment keys for easy assembly', 'Amperage, voltage and NEMA configuration imprinted on face for easy identification', 'Impact and chemical resistant, toughened nylon construction']
• product_highlights: This Bryant connector is ideal for industrial applications requiring a robust and reliable locking connection.
