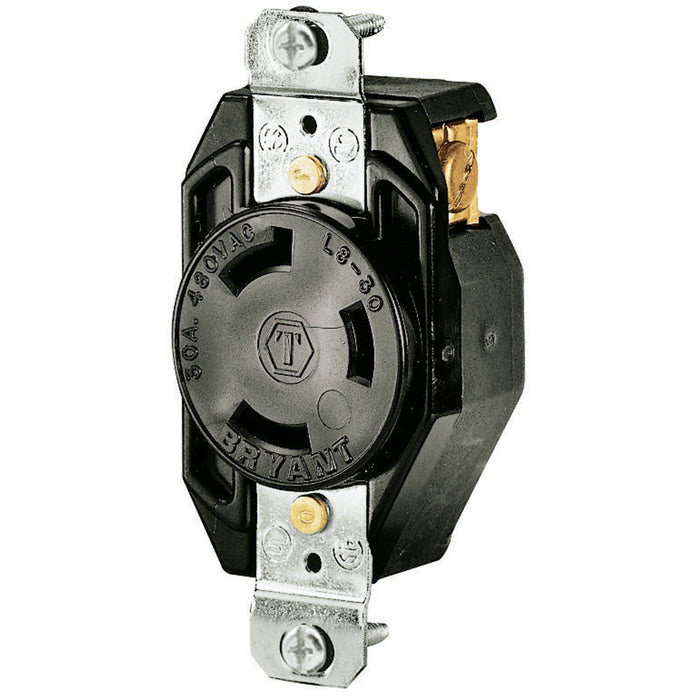

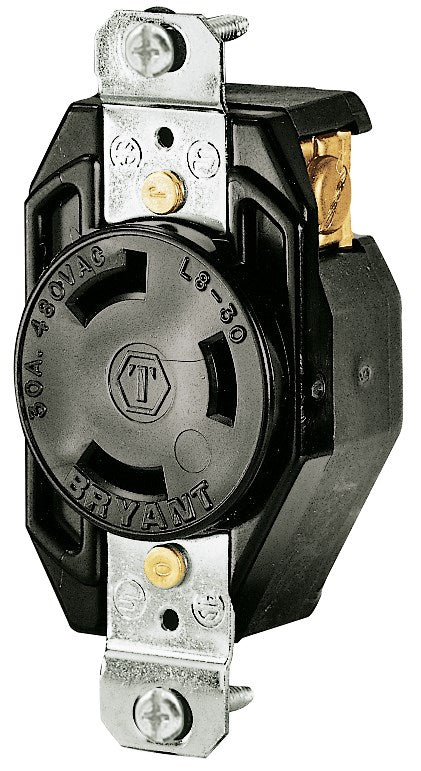

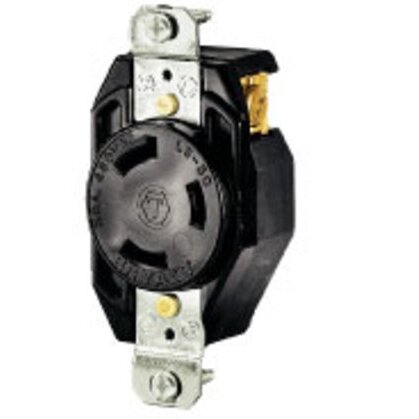

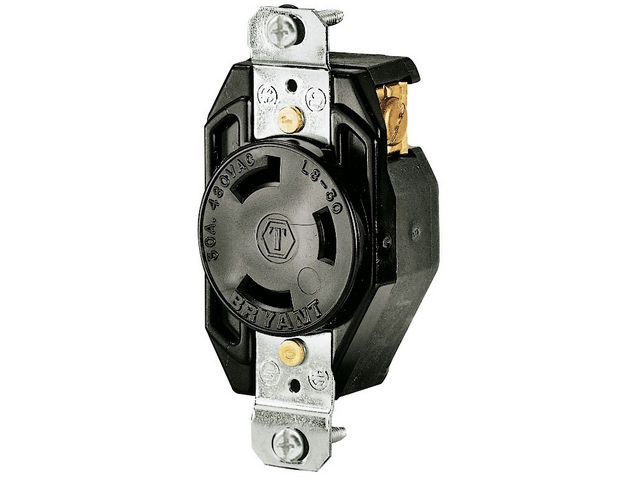

Bryant 70830FR Flush Receptacle 30A 480V L8-30R

Product Description

The BRYANT 70830FR is an industrial flush receptacle, rated at 30A 480V AC, designed with a 2-pole 3-wire grounding configuration and L8-30R NEMA rating. It features combination back and side wiring terminals that accept #14 to #8 AWG solid or stranded conductors. Built for extra heavy-duty industrial applications.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification
• One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention

Product Highlights

Industrial grade receptacle with robust construction, ideal for heavy-duty applications requiring secure and reliable power connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70830FR
• Country of Origin: US

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 70830FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
• Type: Receptacle
• UPC: 781786691131
• Dimensions: 3.28 in x 1.70 in x 1.24 in
• Height: 1.24 in
• Length: 3.28 in
• Width: 1.7 in
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Rating: 30 A
• Dielectric Strength: Withstands 3000V Minimum in
• Voltage Rating: 480 VAC
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Industry Standard(s): WR Rating
• Nema Rating: L8-30R
• Standards - RoHS Compliance Status: CM
• Carton Quantity: 10
• Voltage: 480
• Weight: 0.25 lb
• Wattage: 14,400 W
• Manufacturer: Bryant Electric
• Category: Electrical Receptacles
• UNSPSC: 39121406
• Country of Origin: US
