Bryant 70830ER Industrial Flanged Receptacle 30A 480V L8-30R

Product Description

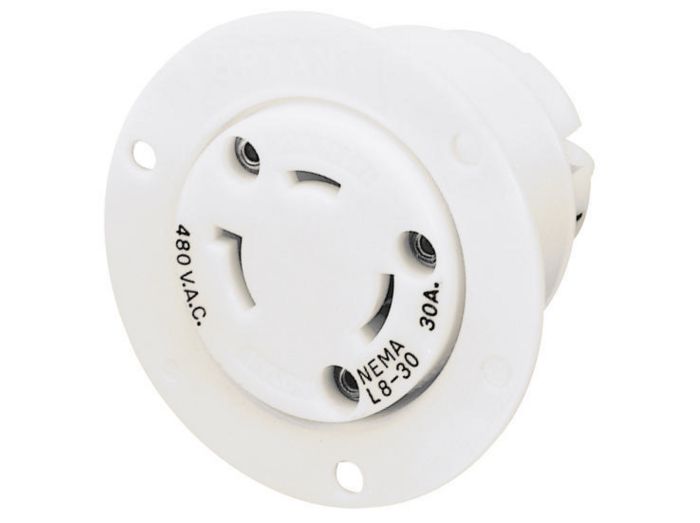

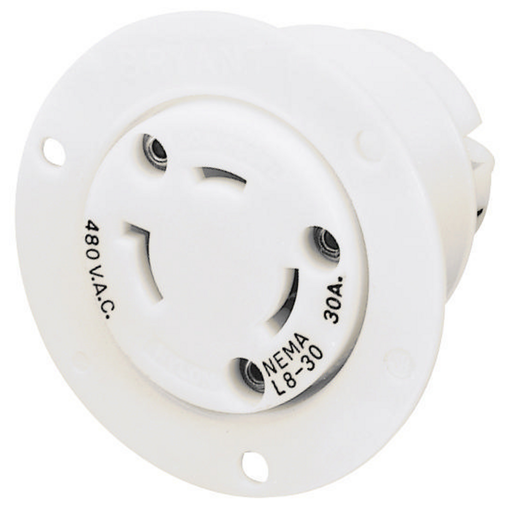

The BRYANT 70830ER is an industrial flanged receptacle designed for heavy-duty applications. Rated at 30A and 480V AC, this 2-pole, 3-wire grounding receptacle features a L8-30R NEMA configuration and screw terminals. It is constructed from impact-resistant thermoplastic for durability and ease of installation in demanding environments.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Ideal for industrial settings requiring a robust and reliable flanged receptacle.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70830ER
• Country of Origin: United States

Technical Specifications

• Catalog Number: 70830ER
• Application: Extra Heavy Duty Industrial Specification Grade
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Flanged Receptacle
• Material: NYLON
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: FLUSH MOUNT
• UPC: 781786691100
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 480 VAC
• Voltage Rating Description: 480V AC
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L8-30R
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 480 VAC
• Body Type: Straight
• Connection Type: Flanged Outlet
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Country of Origin: United States
• Description - Invoice: LKG RCPT, 30A 480V, L8-30R, WH
• Harmonization Code: 8536694020
• MSDS Flag: No
• Special Features: Standard Product
• Class Code: A08
• Image Actual Or Representative: A
• Sub Class Code: A08A172
• Base Unit of Measure: EA
• Mfrcode: BRYANT
• MFR UNSPSC: 39121406
• MFR FULLNAME: BRYANT W-DEVICE/ECONOMY CABLE GRIP
• PRODUCT NAME: LOCKING FLANGED RECEPTACLE OUTLET
• APPROVAL: UL 498, CSA, CE, NOM
• CURRENT RATING: 30 AMPERE
• GROUND TYPE: GROUNDING
• CONFIGURATION: L8-30R
