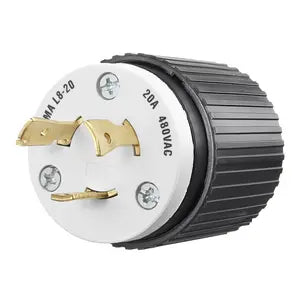

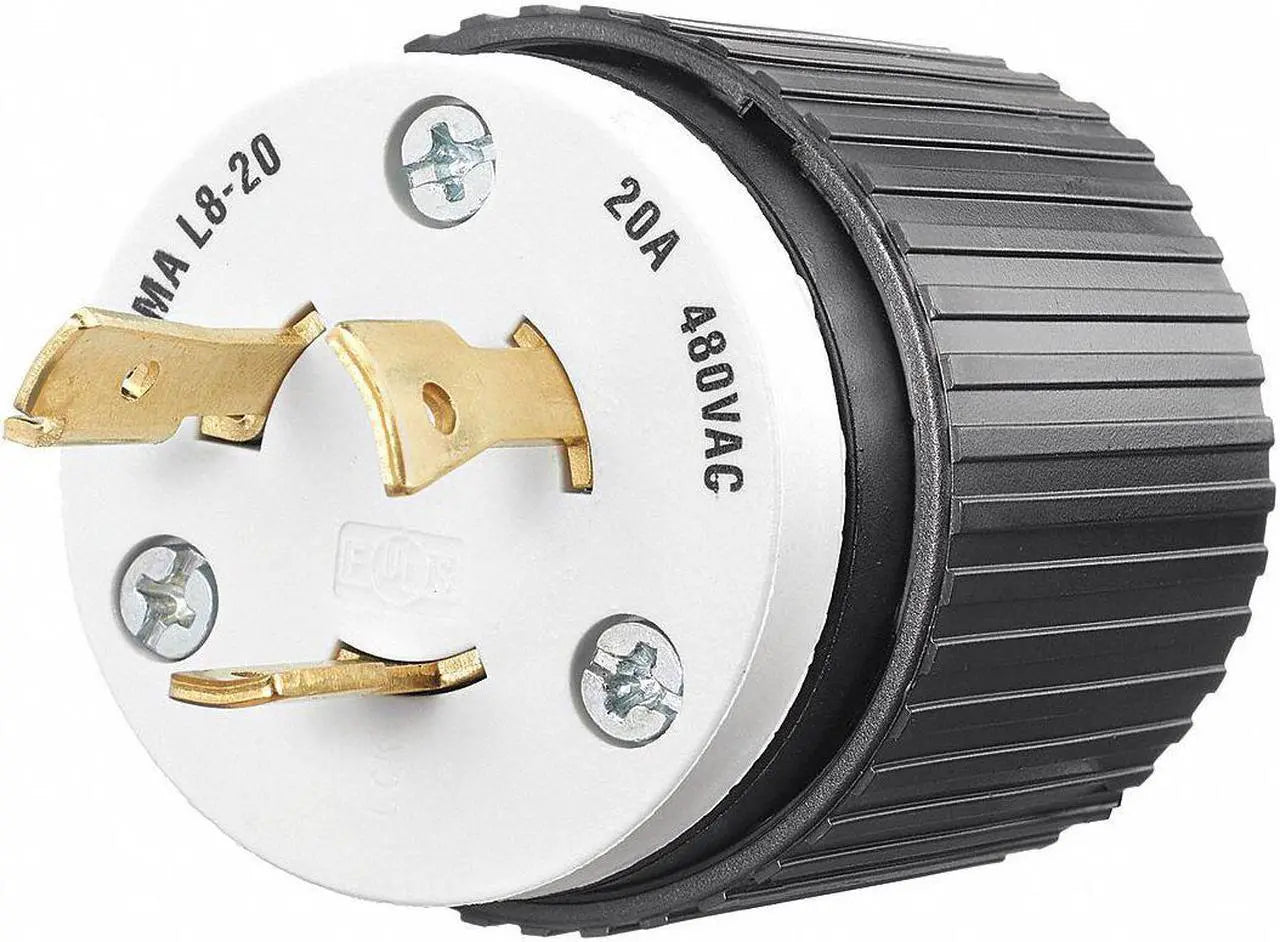

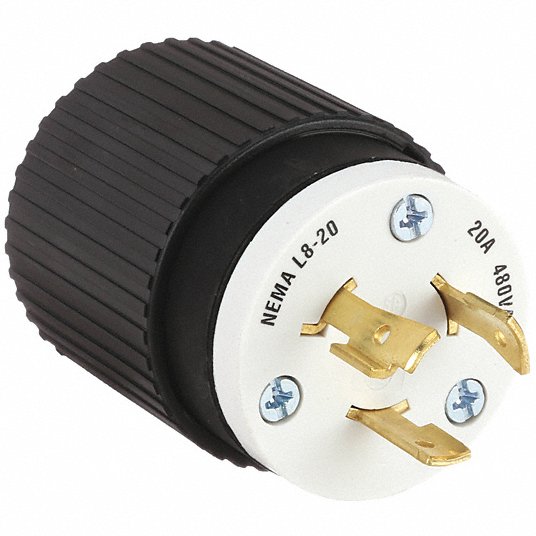

Bryant 70820NP Locking Devices Industrial Male Plug 20A 480V AC L8-20P

Product Description

The BRYANT 70820NP is an industrial male nylon plug designed for secure cable-to-plug connections in industrial and commercial power applications. It is rated for 20A at 480V AC, 2-Pole 3-Wire Grounding, and features screw terminals. Commonly used in environments where vibration or movement could disrupt connections.

• Hand grip features wide-rib, non-slip design
• Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
• Captive, combination Slot/Phillips assembly screws

Product Highlights

This locking plug provides secure connections for industrial and commercial power applications, ideal for environments with vibration or movement.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70820NP
• Country of Origin: USA

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 70820NP
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Triple Gripper Nylon Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786690929
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 480 VAC
• Voltage Rating Description: 480 VAC
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L8-20P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Listed Portables
• Brand: BRYANT
• Manufacturer Part Number: 70820NP
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• For Environment: Dry
• For Maximum Cable Diameter: 0.95 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 3 hp
• Housing Material: Nylon
• IP Rating: IP20
• Maximum Wire Size: 8 AWG
• Minimum Wire Size: 18 AWG
• NEMA Configuration: L8-20
• NEMA Plug Configuration: L8-20P
• Number of Blades: 3
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: NEMA WD-1; NEMA WD-5; UL 498
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121402
• Model: 70820NP
• Features: Locking Plug, Wiring Style Standard, Shrouded / Non-Shrouded Non-
