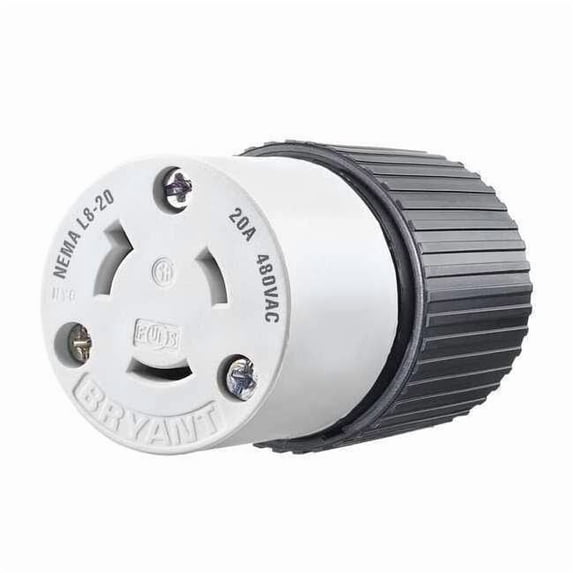

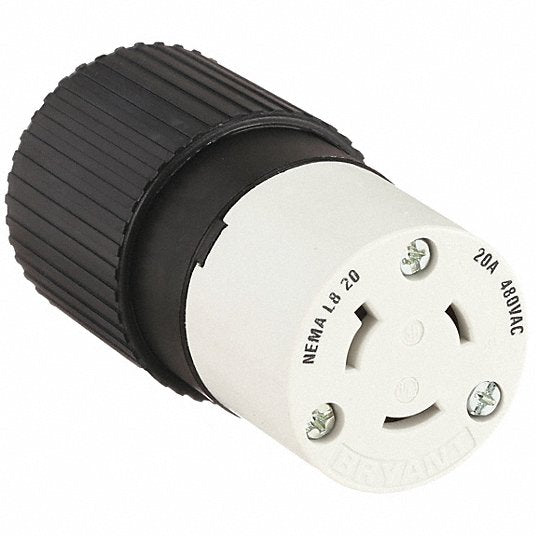

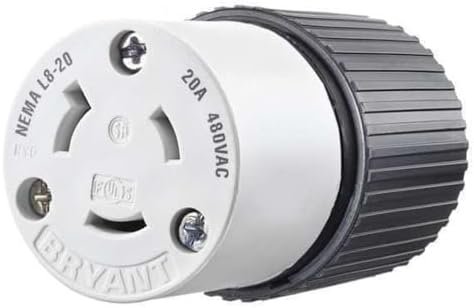

Bryant 70820NC Tech Spec Industrial Grade Nylon Connector 20 Amp 480V AC

Product Description

The Bryant 70820NC is an industry-standard heavy-duty electrical connector. Designed for reliable and safe electrical connections, it features impact and chemical-resistant nylon construction. It accommodates cord diameters of 0.300 inch - 0.950 inch. This connector makes inline connections with plugs to supply equipment with power.

• Resilient dust seal surrounds cord, helping to prevent moisture and contaminants from entering wiring chamber
• Internal self-centering triple gripper cord grip with radius teeth design provides secure cord retention and reduces installation time
• Transparent Terminal cover, extended teardrop wiring pockets and backed out captive Terminal screws simplify wiring

Product Highlights

Industrial grade nylon connector with secure cord retention and easy wiring.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70820NC
• Country of Origin: US

Technical Specifications

• Brand: BRYANT
• Color: Black, White
• Product Dimensions: 30"D x 8"W x 6"H
• Material: Nylon
• Specification Met: NEMA
• Manufacturer: Bryant Electric
• Model: 70820NC
• Part Number: G4439849
• Unit Count: 1.0 Count
• Item Weight: 5.44 ounces
• Item Type Name: Electrical Connector Body
• Included Components: Electrical Connector Body
• MPN: 70820NC
• Cap Type: No Cap or Cover
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• Current Rating: 20 A
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 3 hp
• Housing Color: Black; White
• Housing Material: Nylon
• IP Rating: IP20
• Maximum Operating Temperature: 75 °C
• Maximum Wire Size: 8 AWG
• Midget Locking: No
• Minimum Operating Temperature: -40 °F
• Minimum Wire Size: 18 AWG
• NEMA Configuration: L8-20
• NEMA Enclosure Rating: Not Rated
• NEMA Receptacle Configuration: L8-20R
• Number of Poles: 2
• Number of Wires: 3
• Overall Length: 2.13 in
• Phase: Single
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: CSA Certified; UL Listed
• Voltage Rating: 480V AC
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121421
• Application: Heavy Duty Industrial
• Catalog Number: 70820NC
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 20A Triple Gripper Nylon Connector
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 781786690899
• Display Size: Standard Sized Product
• Height: 3.9 in
• Length: 2.13 in
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Conductor Range: #14 AWG to #12 AWG
• Number of Conductors: 3-Wire Grounding
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L8-20R
• Standards - RoHS Compliance Status: CM
• Amps: 0 Amps
• Watts: 0 W
• Has nrtl listing certification: N
